single acting cylinders

HIGH-EFFICIENCY UNIDIRECTIONAL FORCE SOLUTIONS

Single acting hydraulic cylinders deliver powerful, controlled force in one direction — driven by hydraulic pressure on the extend stroke and returned by an internal spring or gravity. Engineered for reliability in demanding industrial environments, they offer a cost-effective solution where one-way force application is required.

View Products Get Custom Quote
single acting cylinders
single acting cylinders
Browse Range

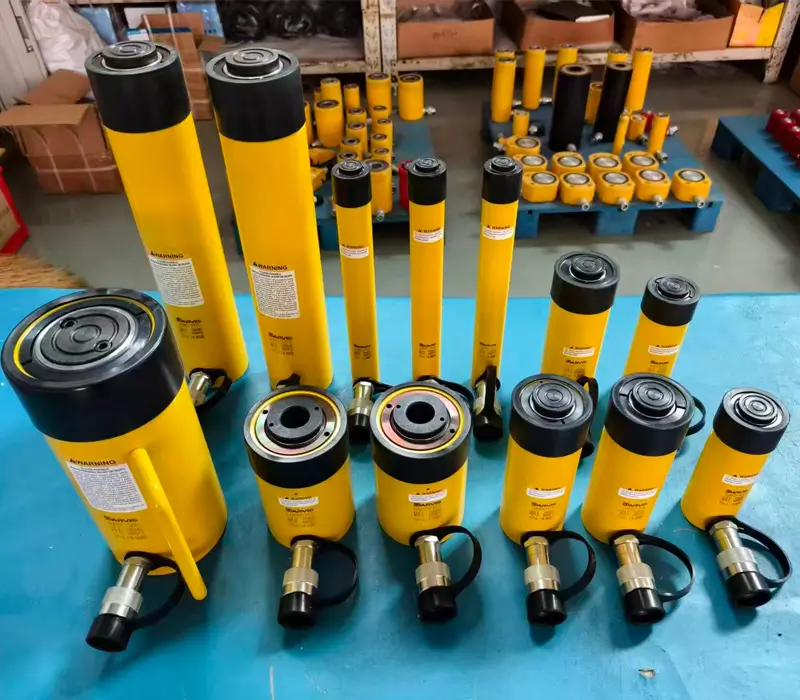

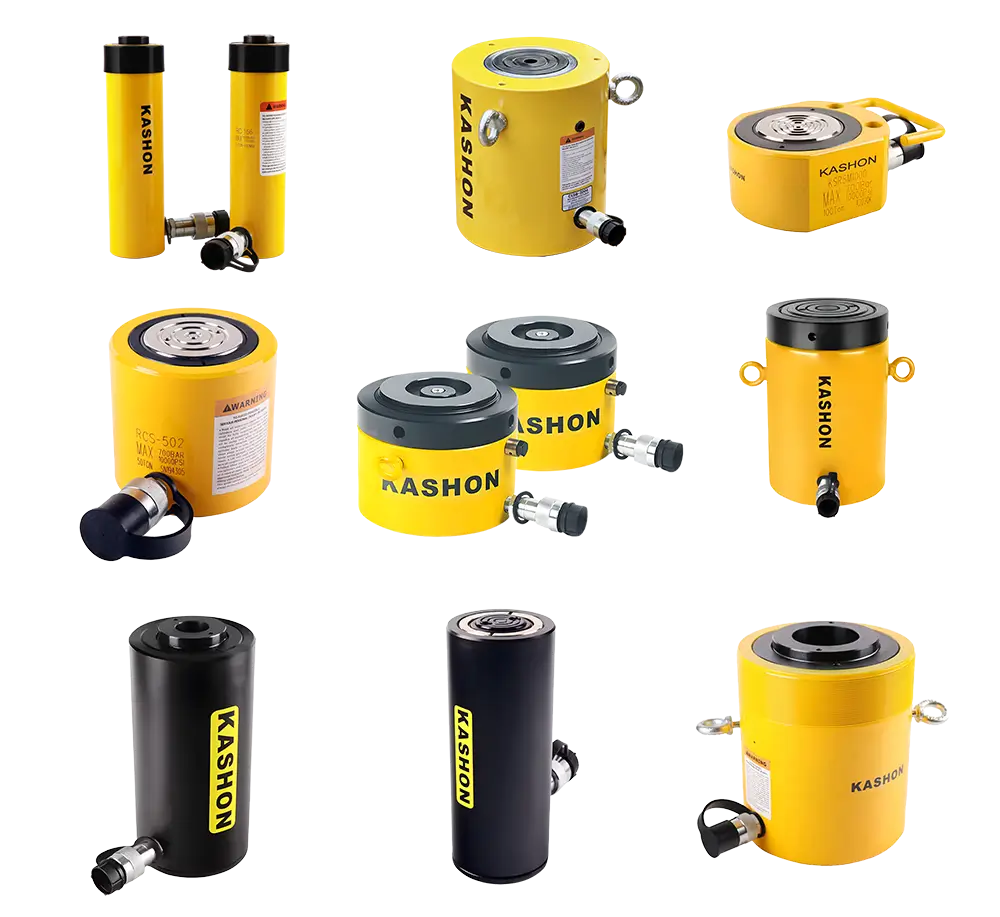

Our single acting cylinders
Categories

Precision-engineered solutions built for demanding industrial environments. Select a product to view full specifications.

RAC

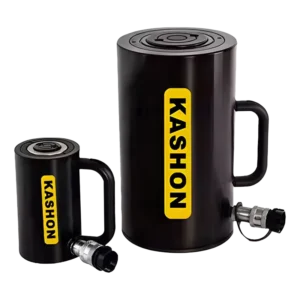

RAC-Series, Single-acting Aluminum Cylinder

RAC-Series single-acting Aluminum Cylinder design for portable lifting and pushing applications. Composite bearings provide 10% more side load capacity and durability with hard-coat finish and steel base plate. An integrated stop ring prevents over-travel for safe and reliable operation.

Capacity: 20-150 Ton
Stroke: 50-150 mm
Pressure: 70Mpa
View Specs
CLSG

CLSG Series, Single-Acting High Tonnage Cylinder

The CLSG-Series single-acting high tonnage Cylinderfor heavy-duty use, high-tonnage performance for construction, civil engineering, and maintenance applications. Every model is equipped with a standard integral tilt saddle to reduce the risk of side-loading and features an over-stroke restrictor port for enhanced durability.

Capacity: 50-1000 Ton
Stroke: 50-300mm
Pressure: 70Mpa
View Specs
HCL

HCL Series, Single-Acting High-Tonnage Lock Nut Cylinders

The Kashon HCL-Series tolerates up to 10% side-loading, ensuring stability in demanding high-tonnage lifts. Protected by a full nitrocarburized finish for superior corrosion resistance, these single-acting, load-return cylinders are built to perform in applications up to 1,000 tons.

Capacity: 5-100
Stroke: 16-260
Pressure: 700BAR/10000PSI
View Specs
LPL

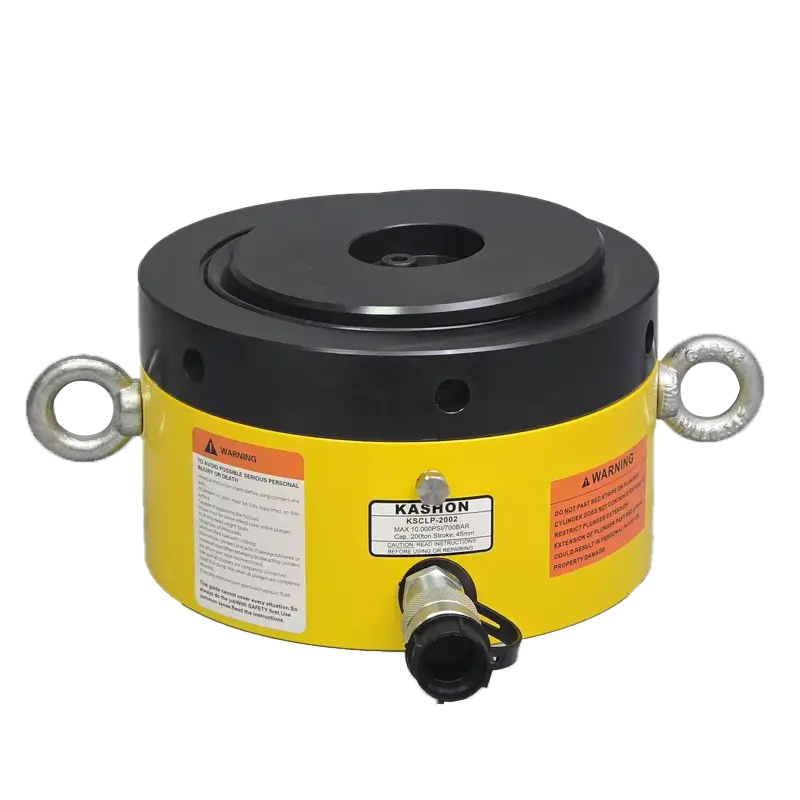

LPL-Series Low-Height Lock Nut Cylinders

The high-tonnage Kashon LPL Series low height lock nut cylinders deliver superior resilience and robust side-load protection. Their exceptionally low profile is ideal for applications within constrained spaces.

Capacity: 60-500
Stroke: 45, 50
Pressure: 700BAR/10000PSI
View Specs
CLL

CLL Series Lock Nut Cylinders

The Kashon CCL-Series Lock Nut Cylinders: single-acting, 1,000-ton cylinders featuring 10% side-load tolerance and a corrosion-resistant nitrocarburized finish for maximum durability.

Capacity: 5-100
Stroke: 16-260
Pressure: 700BAR/10000PSI
View Specs
RCH

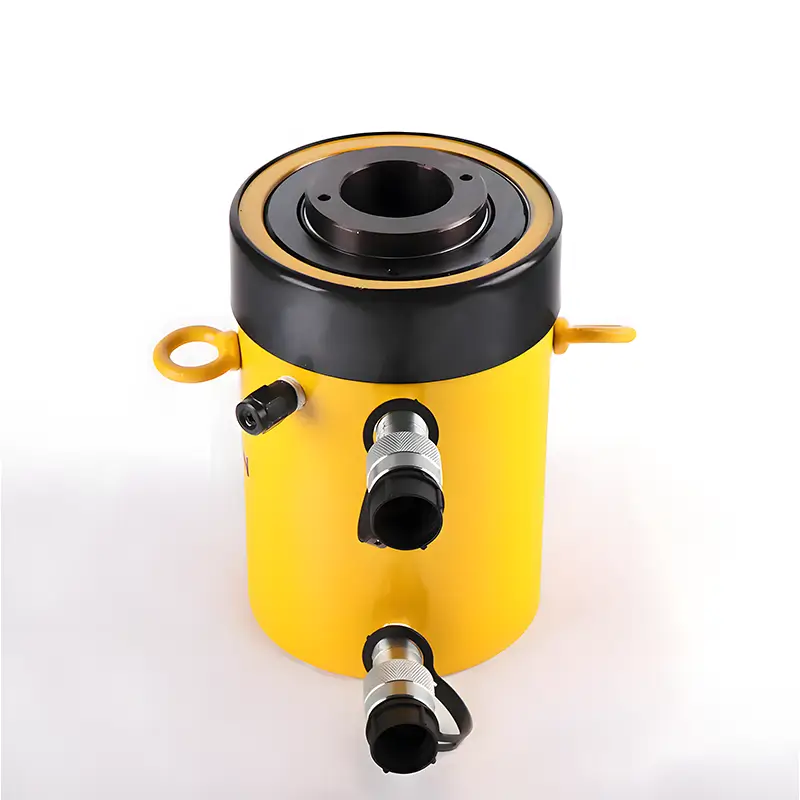

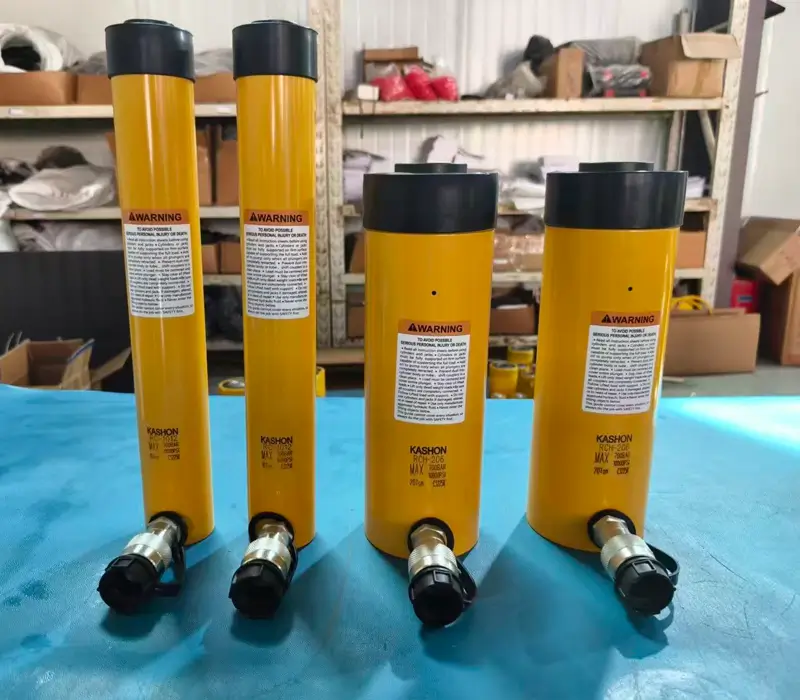

RCH Series Single-acting Hollow Plunger Cylinder

The RCH Series Hollow Plunger Cylinders are a robust, high-performance solution for applications that demand power and precision. Their single-acting, spring return design ensures fast, simple retraction, while the hard chrome-plated plunger provides superior wear and corrosion resistance.

Capacity: 5-100
Stroke: 16-260
Pressure: 700BAR/10000PSI
View Specs
KSRC

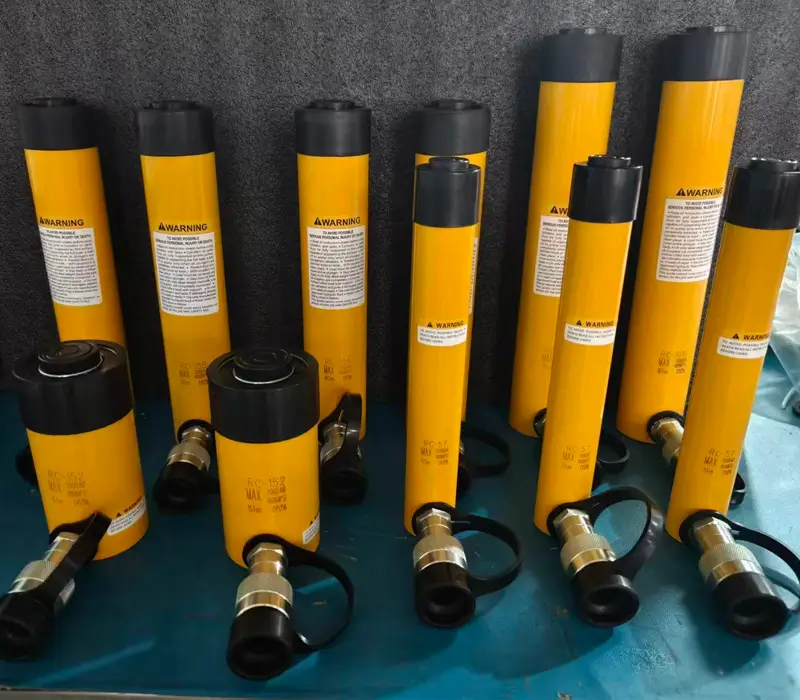

RC Single Acting Hydraulic Cylinders

Designed for a wide range of heavy-duty tasks, this single-acting hydraulic cylinder delivers 5 to 100 tons of capacity with a maximum working pressure of 700 bar, ensuring efficient and precise control. The cylinder applies force in a single direction through hydraulic pressure, while the piston retracts via spring or gravity return. It is widely used for lifting, pushing, pulling, and positioning in industrial production, construction, and maintenance applications. We offer both robust steel and lightweight aluminum models to meet various operational needs.

Capacity: 5-100
Stroke: 16-260
Pressure: 700BAR/10000PSI
View Specs
Technical Overview

How Does It Work?

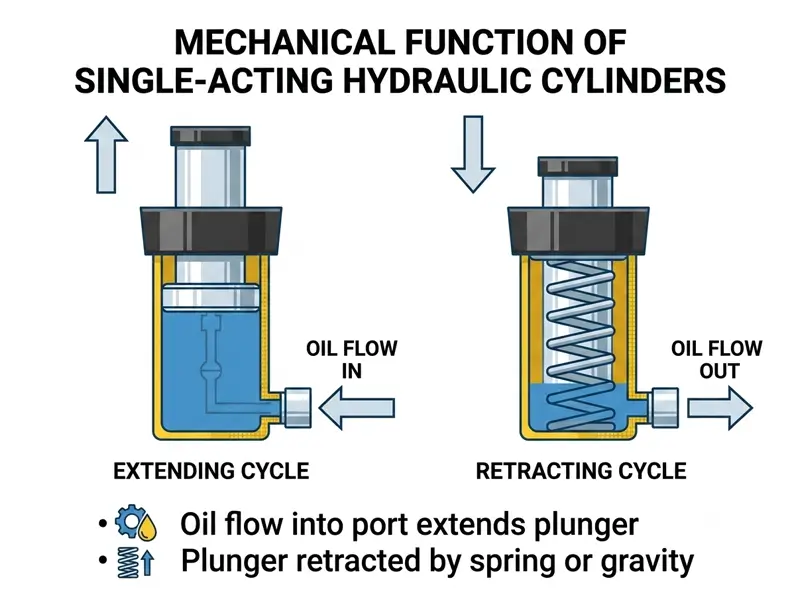

OIL IN RETURN HYDRAULIC CYLINDER -- CROSS SECTION
Precision Hydraulic Engineering

How does single action cylinder work?

A single acting hydraulic cylinder uses hydraulic pressure applied to one side of the piston to generate force in a single direction — the extension stroke. This is the working stroke where maximum force is produced.

The return stroke is accomplished passively — either by a pre-loaded internal spring that pushes the piston back once pressure is relieved, or by the weight of the load itself. This elegant simplicity means fewer seals, fewer potential failure points, and lower maintenance requirements.

  1. Extend (Hydraulic Drive): Pressurized hydraulic fluid enters through the port, pushing the piston and rod outward with full rated force.
  2. Retract (Spring / Gravity): When pressure is released, an internal spring or the load’s own weight returns the piston to its original position.



Why Choose Us

Core Advantages

Simple & Reliable

With fewer moving parts, our robust design ensures lower maintenance and superior durability, delivering consistent and stable power for the long haul.

Efficient Operation

The automatic spring-return feature simplifies your hydraulic setup and accelerates work cycles, making it ideal for high-speed, repetitive applications.

Compact & Flexible

More compact and lightweight than double-acting models, these cylinders are the perfect solution for mobile applications, on-site repairs, and operations in confined spaces.

System Compatibility

Designed for seamless integration, our cylinders perfectly match the full range of Kashon manual, electric, and air hydraulic pumps, offering you a complete system solution.

Low Maintenance Requirements

Single-port design minimizes seal wear points. Chrome-plated plungers and hardened bores resist corrosion and abrasion for extended service intervals.

Tailored Engineering

Can't Find the
Perfect Match?
Get Your Custom Solution

Our engineering team designs and manufactures bespoke hydraulic solutions to your exact specifications. From concept to production, we deliver precision-built tools for any application.

  • Full-cycle in-house design and manufacturing
  • Custom stroke, capacity, and pressure ratings
  • ISO 9001 & TÜV certified production process
  • Fast turnaround with Shanghai logistics hub
  • Dedicated engineering support from concept to delivery
Submit Custom Requirements Talk to an Engineer
18+
Years Exp.
15+
Countries
ISO
9001 Cert.
FAQ

Common Questions

Everything you need to know about single acting cylinders products and specifications.

You need to consider four main factors: ① The maximum force required (tonnage); ② The required stroke length; ③ The available installation space (especially the cylinder’s collapsed height); and ④ The operating environment. If you are unsure, our technical team is happy to provide expert selection advice based on your specific working conditions.

It depends on your usage frequency and power source. For occasional or mobile jobs, a manual pump is an economical and portable choice. For frequent or continuous operations, an electric pump offers higher efficiency. In workshop environments with a compressed air supply, an air hydraulic pump is a safe and effective option.
