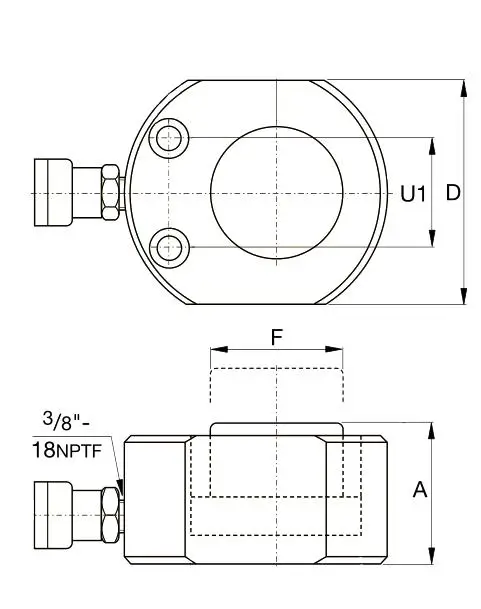

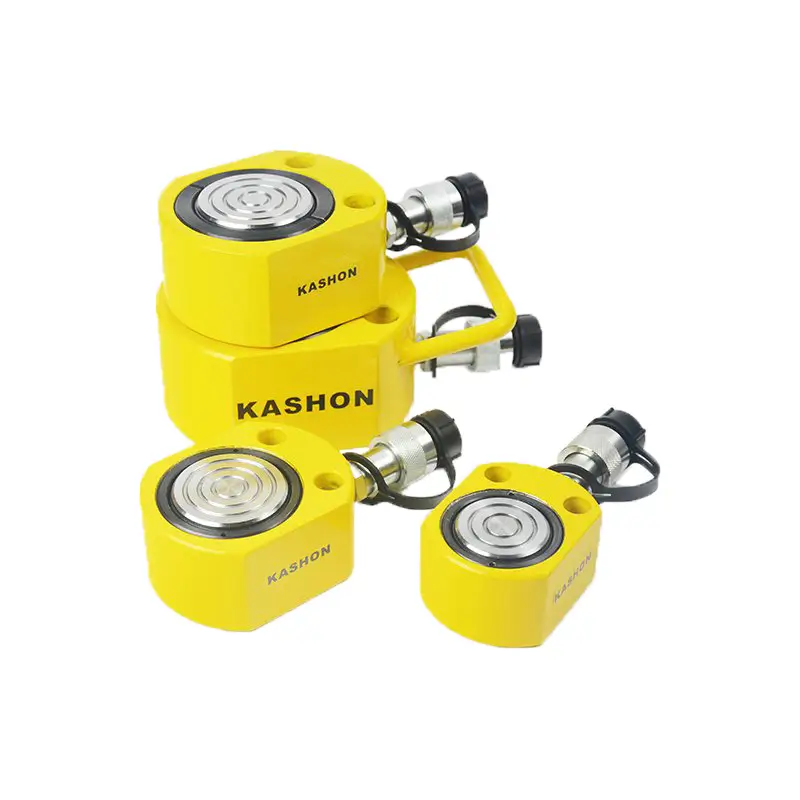

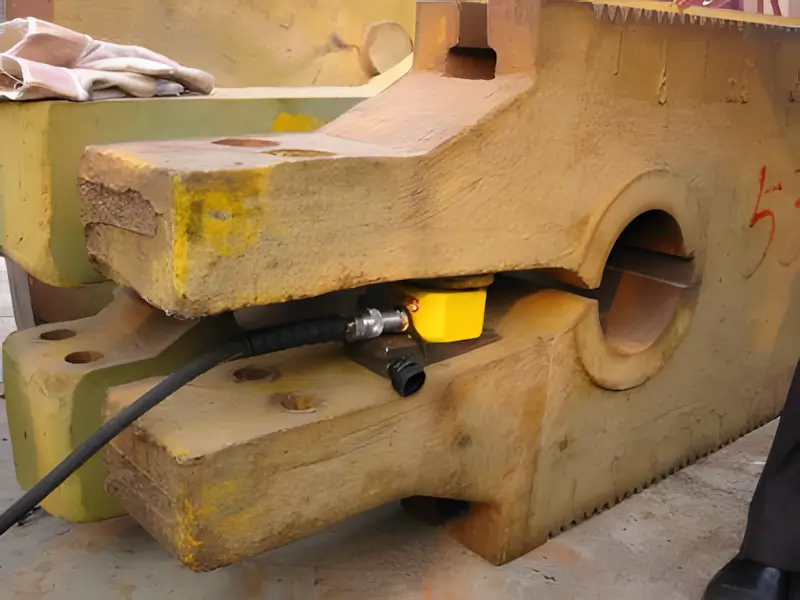

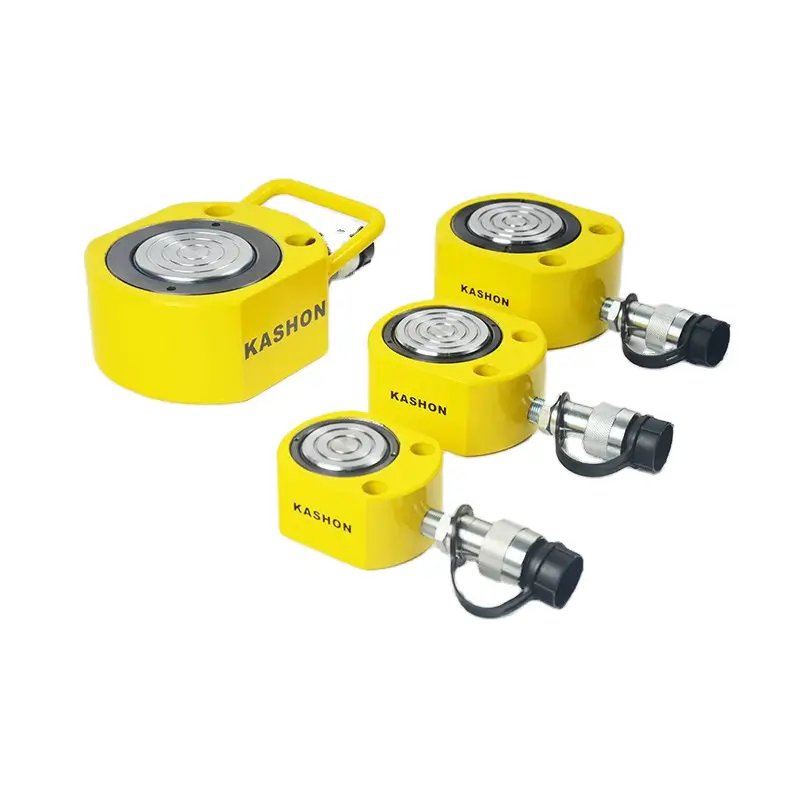

The RSM-Series Low Profile Hydraulic Cylinder is engineered to deliver maximum power in the most confined spaces. Its exceptionally low collapsed height and short stroke make it the ideal choice for applications with minimal clearance, where standard cylinders cannot operate.
Built for versatility, the cylinder’s flat-faced design ensures stable and secure performance in any orientation, whether vertical or horizontal. For seamless integration into production setups or custom fixtures, each model includes two base mounting holes for easy and rigid anchoring.
A key advantage of the RSM-Series is its heavy-duty spring-return mechanism. Unlike load-return models, it provides fast and automatic plunger retraction, significantly boosting cycle times and overall productivity for a more efficient workflow.
- Max Working Pressure: 700 Bar;
- Single acting cylinders with heavy duty return springs and are designed to be used in all orientations;
- These flat cylinders will fit where other cylinders collapsed height will not enable placement;
- Coated with corrosive resistant baked enamel;
- Steel cylinder piston rods are hard chrome plated;
- Saddles are not required due to grooved cylinder piston rod ends;
- The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension;
