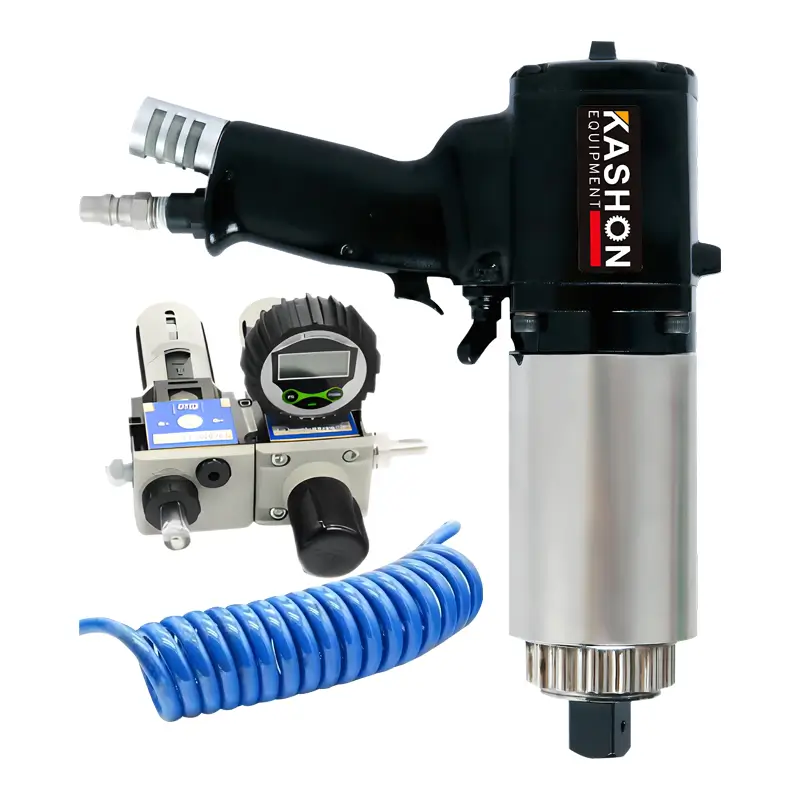

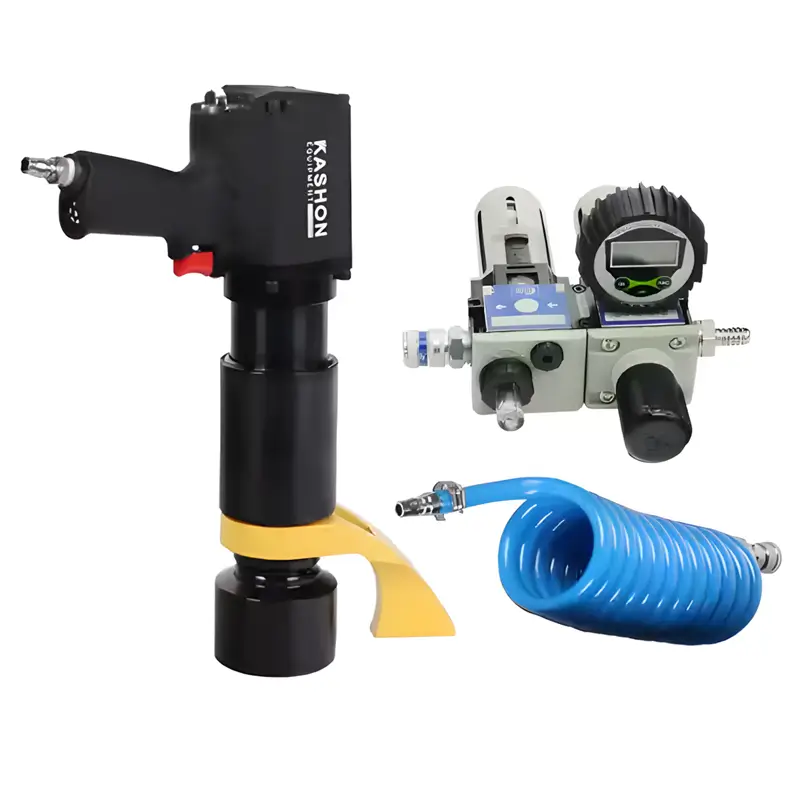

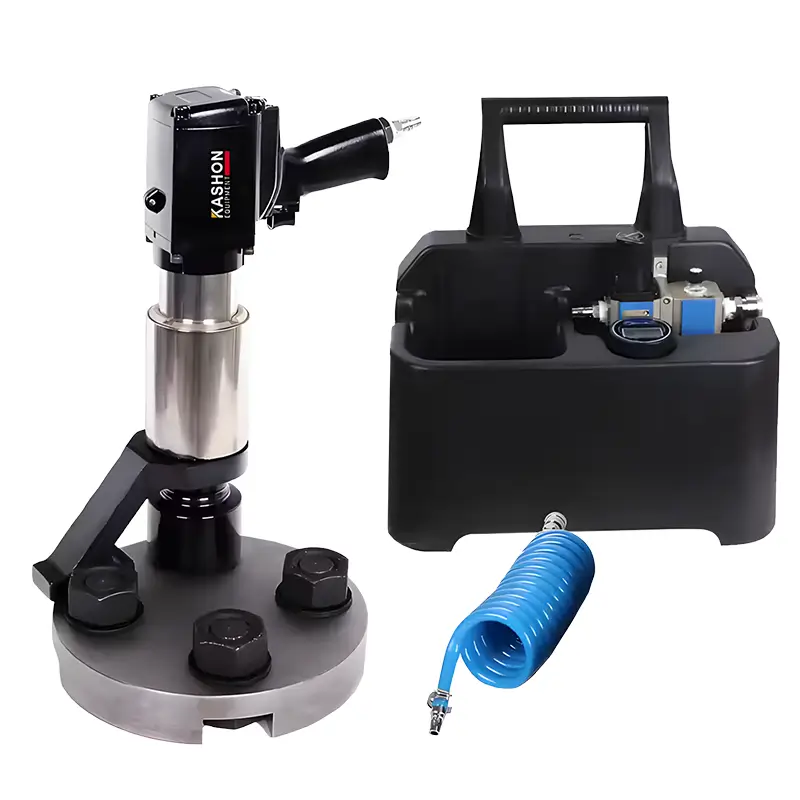

Kashon pneumatic torque wrench is a type of torque wrench that uses a high-pressure air pump as its power source. It is driven by one or two air motors, and its torque output is controlled by adjusting the air pressure.
This tool features a very compact and small design, yet it can deliver an extremely high torque, reaching up to 300,000 N.m. Its operation is very quiet, below 85 dB(A), and it is virtually impact-free. This design not only protects the tool itself but also ensures the safety of the operator.

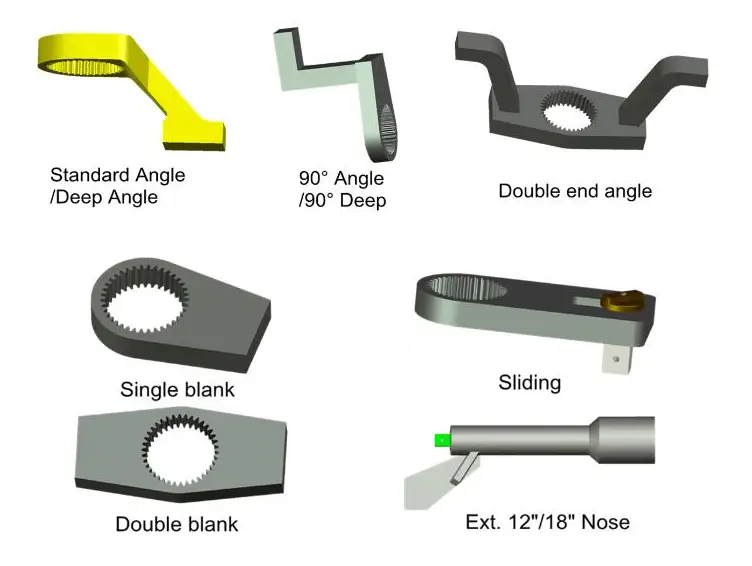

The air source regulator allows for pressure adjustment to achieve high-precision torque control, with a repeatability of up to ±1%. The design includes high and low-speed gears, making operation more flexible and adaptable to different working conditions. Furthermore, its reaction arm is designed for unlimited 360° rotation, making it suitable for operations at various angles.
Compared to other types of torque wrenches, the pneumatic torque wrench offers numerous advantages: it is non-impact, low-noise, comfortable to operate, highly safe, lightweight, efficient, and cost-effective. It performs exceptionally well in applications such as production lines, pipeline installation, and equipment maintenance.
- 6 Bar compressed air, air consumption under max.power: 600L/min;
- Powerful and low noise, less than 80Dba under max. power;
- Set and control torque by adjusting the pressure on air register; Accuracy: ±5%，repeatability: ±1%;
- Optional digital air register, torque precision: ±3%, repeatability: ±1%;
- Compact planet design, small size, higher torque/weight ratio;
- 4-way type of power control system, large-span torque;
- 7-vane type high performance air motor, high efficiency, no impact torque can be continually output;
- Design of reverse pressure-bias motor provide the max. power and torque in reversing mode, satisfying the request of higher torque when loosing bolts;
- Positive/reverse button by single hand, switch valve of TOUCH type;
- Excellent performance of continuous running can meet high workload.
