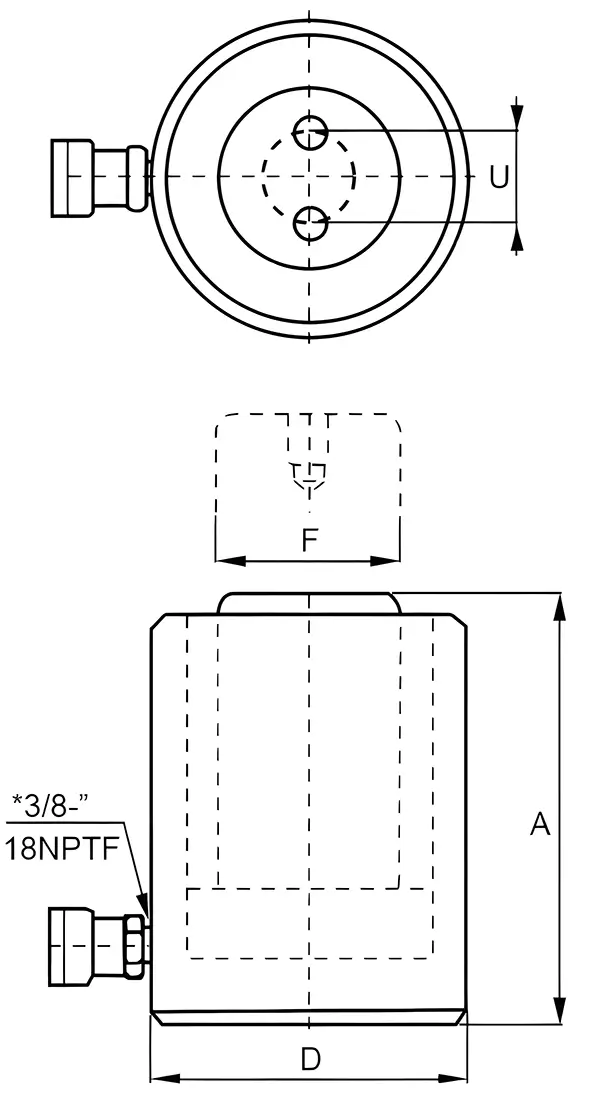

The RSM-Series Low Height Cylinder is the ultimate solution for jobs with tight clearance, engineered to deliver reliable hydraulic force where conventional cylinders simply cannot fit.
Its design prioritizes user convenience and versatility. Integrated carrying handles ensure easy portability and positioning on the job site, while the pre-drilled mounting holes allow for quick and secure fixturing in any setup.
Operating as a single-acting, spring-return cylinder, it offers fast, automatic retraction for improved productivity. The hard chrome-plated steel plunger ensures exceptional durability and resistance to wear, while the grooved plunger end provides a stable lifting surface without the need for an additional saddle.
Every RSM-Series cylinder is delivered ready for work, complete with a CR-400 coupler and a protective dust cap to ensure long-lasting, dependable performance.
- Single acting cylinders with heavy duty return springs and are designed to be used in all orientations;
- Light weight, low profile design for use in confined spaces;
- Coated with corrosive resistant baked enamel;
- Steel cylinder piston rods are hard chrome plated with bronze plating available on request;
- Saddles are not required due to grooved cylinder piston rod ends;
- The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension.
