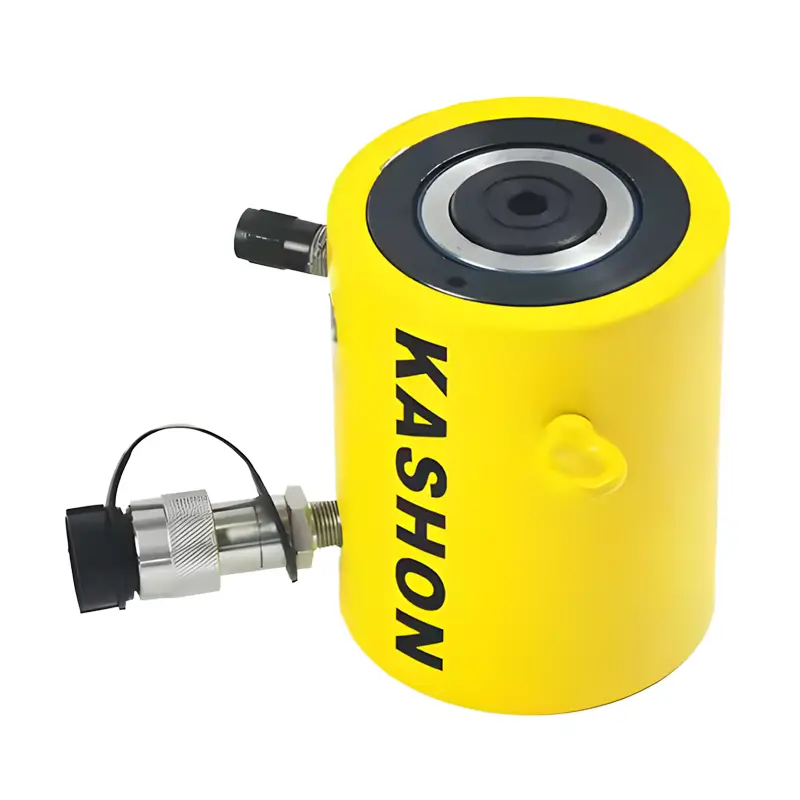

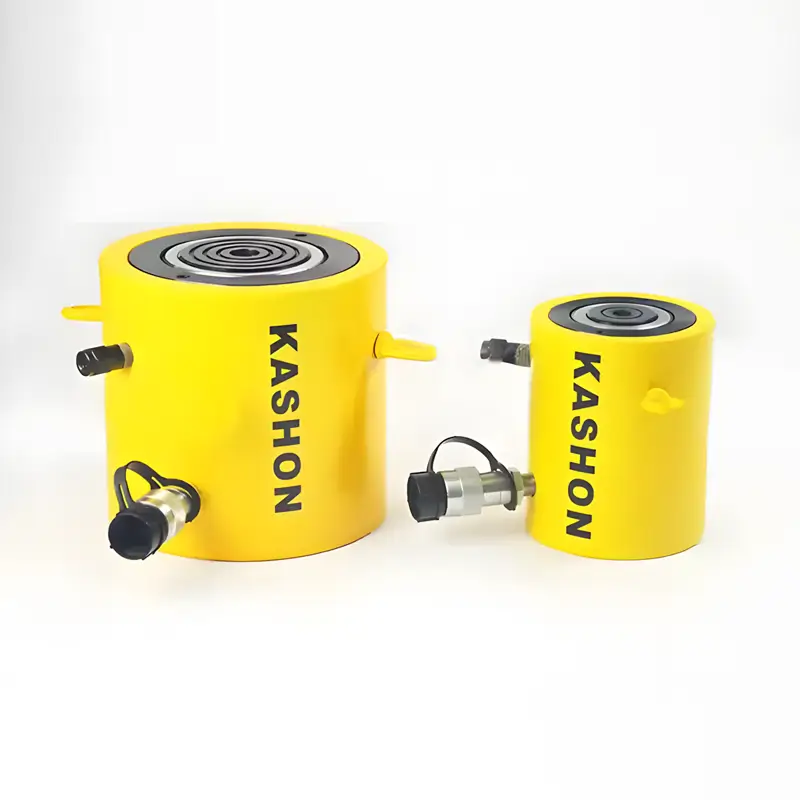

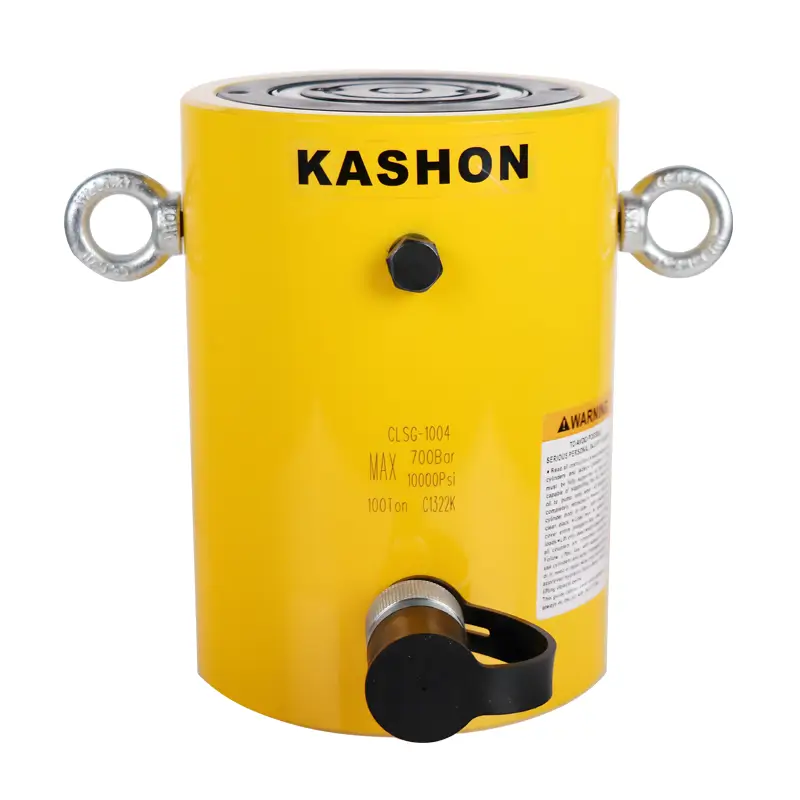

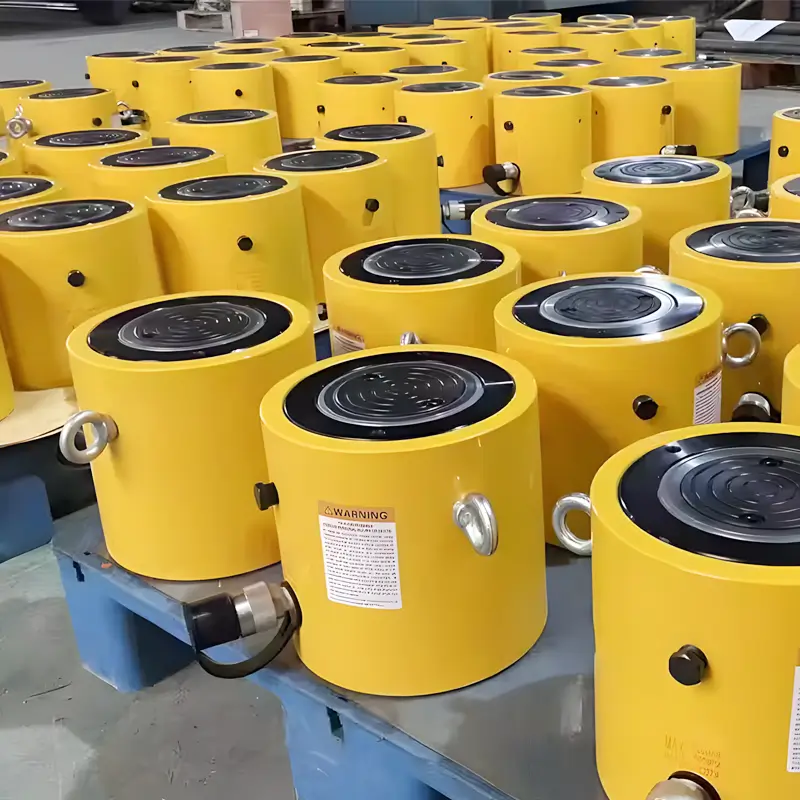

The CLSG-Series single-acting high tonnage Cylinderfor heavy-duty use, high-tonnage performance for construction, civil engineering, and maintenance applications. Every model is equipped with a standard integral tilt saddle to reduce the risk of side-loading and features an over-stroke restrictor port for enhanced durability.

Key Specifications

Parameter Value
Model CLSG
Material SAIVS
Stroke 50-300mm
Working Pressure 70Mpa

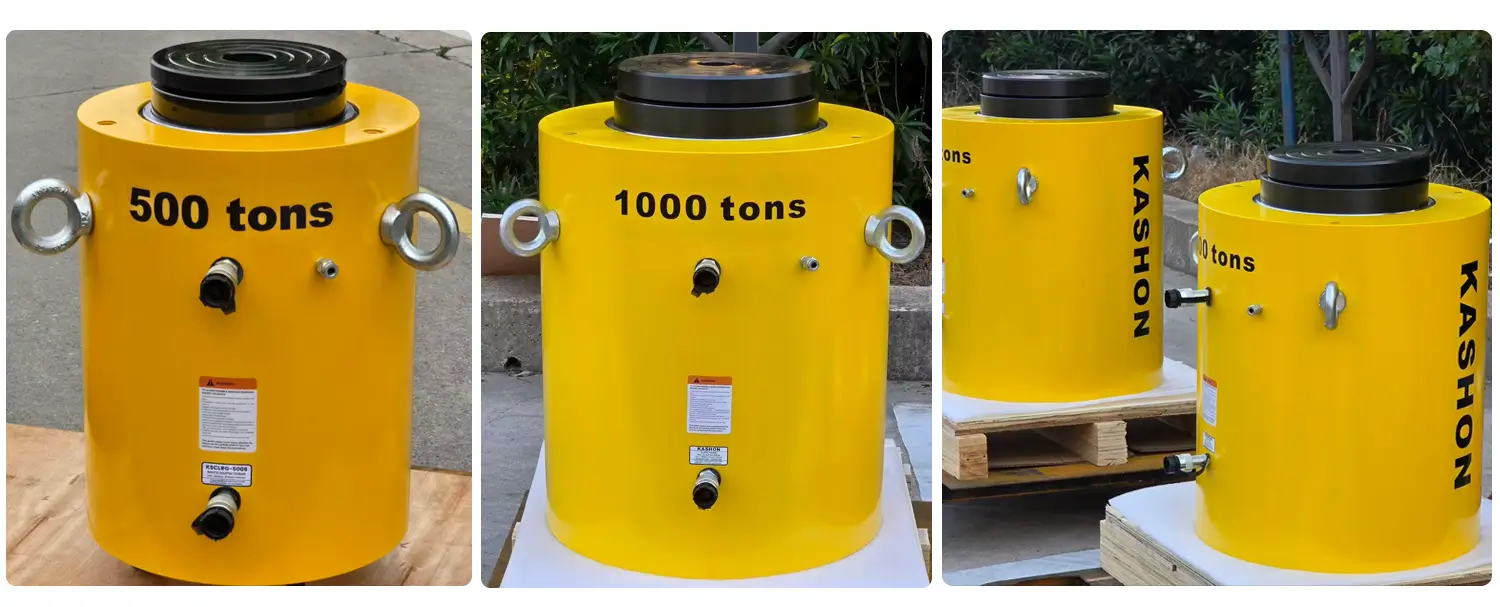

Work Capacity 50-1000 Ton
GET A QUOTE Download Datasheet
ISO 9001 TÜV Certified Global Shipping

Overview

Kashon CLSG-Series of single-acting, high-tonnage cylinders. This premium series provides peace of mind with an integral stop ring for decisive piston blow-out protection.
A specialized plunger wiper significantly extends cylinder life by reducing contamination. For maximum on-site flexibility, it comes standard with base mounting holes and interchangeable hardened saddles. Should your project demand even greater force, we also offer 1500 and 2000-ton models upon request.

  • Max. Working Pressure: 700 Bar; Single acting, load return；
  • Base mounting holes are standard on all models；
  • Unique loading design enables it to bear unbalanced loads up to 3%   capacity with no damage to the cylinder；
  • The cylinder piston rod is protected from damage by the   interchangeable hardened saddles；
  • The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension；
  • The dust ring prevents contamination and enhances longer cylinder life.

Specifications

Model Capacity
(ton)		 Stroke
B
(mm)		 Oil
Capacity
(cm³)		 Collaps.
Height
A (mm)		 Outside Dia.
D
(mm)		 Saddle Protr.
From Plgr.
K
(mm)		 Weight
(kg)		 Optional Tilt
Saddle Model
KSCLSG-502 50 50 385 162 130 1 17 GATG-50
KSCLSG-504 50 100 770 212 130 1 20 GATG-50
KSCLSG-506 50 150 1155 262 130 1 23 GATG-50
KSCLSG-508 50 200 1540 312 130 1 27 GATG-50
KSCLSG-5010 50 250 1924 362 130 1 31 GATG-50
KSCLSG-5012 50 300 2309 412 130 1 34 GATG-50
KSCLSG-1002 100 50 664 182 165 1 19 GATG-100
KSCLSG-1004 100 100 1327 232 165 1 29 GATG-100
KSCLSG-1006 100 150 1991 282 165 1 40 GATG-100
KSCLSG-1008 100 200 2655 332 165 1 50 GATG-100
KSCLSG-10010 100 250 3318 382 165 1 61 GATG-100
KSCLSG-10012 100 300 3982 432 165 1 71 GATG-100
KSCLSG-1502 150 50 993 196 205 1 39 GATG-150
KSCLSG-1504 150 100 1986 246 205 1 52 GATG-150
KSCLSG-1506 150 150 2978 296 205 1 65 GATG-150
KSCLSG-1508 150 200 3971 346 205 1 78 GATG-150
KSCLSG-15010 150 250 4964 396 205 1 92 GATG-150
KSCLSG-15012 150 300 5957 446 205 1 105 GATG-150
KSCLSG-2002 200 50 1330 216 235 1 55 GATG-200
KSCLSG-2006 200 150 3989 316 235 1 91 GATG-200
KSCLSG-20012 200 300 7977 466 235 1 146 GATG-200
KSCLSG-2502 250 50 1832 235 275 1 89 GATG-250
KSCLSG-2506 250 150 5497 335 275 1 136 GATG-250
KSCLSG-25012 250 300 10993 485 275 1 207 GATG-250
KSCLSG-3002 300 50 2281 312 310 1 184 GATG-300
KSCLSG-3006 300 150 6843 412 310 1 232 GATG-300
KSCLSG-4002 400 50 2800 375 350 3 270 GATG-400
KSCLSG-4006 400 150 8399 475 350 3 330 GATG-400
KSCLSG-40012 400 300 16797 625 350 3 421 GATG-400
KSCLSG-5002 500 50 3653 419 400 3 401 GATG-500
KSCLSG-5006 500 150 10959 519 400 3 480 GATG-500
KSCLSG-50012 500 300 21918 669 400 3 599 GATG-500
KSCLSG-6002 600 50 4276 429 430 3 474 GATG-600
KSCLSG-6006 600 150 12829 529 430 3 565 GATG-600
KSCLSG-60012 600 300 25659 679 430 3 701 GATG-600
KSCLSG-8002 800 50 5881 474 505 3 741 GATG-800
KSCLSG-8006 800 150 17644 574 505 3 868 GATG-800
KSCLSG-10002 1000 50 7329 564 560 3 1062 GATG-1000
KSCLSG-10006 1000 150 21986 664 560 3 1213 GATG-1000
KSCLSG-100012 1000 300 43972 814 560 3 1439 GATG-1000
