XLCTP Low Profile Hydraulic Torque Wrench

$665-666 / Unit (FOB Shanghai)

Engineered with a single-piece TIAL-919 aerospace titanium alloy power head for ultimate strength and durability. It is exceptionally light, thin, and compact, yet delivers immense torque to conquer any challenging workspace.

Key Specifications

Parameter Value
Model MXT
Torque Range 112 - 72000 Nm
Square Drive Size 3/4'', 1'',1-1/2'' 2-1/2''
Working Pressure 700BAR/10000PSI
Accuracy ±3%
GET A QUOTE
ISO 9001 TÜV Certified Global Shipping

Overview

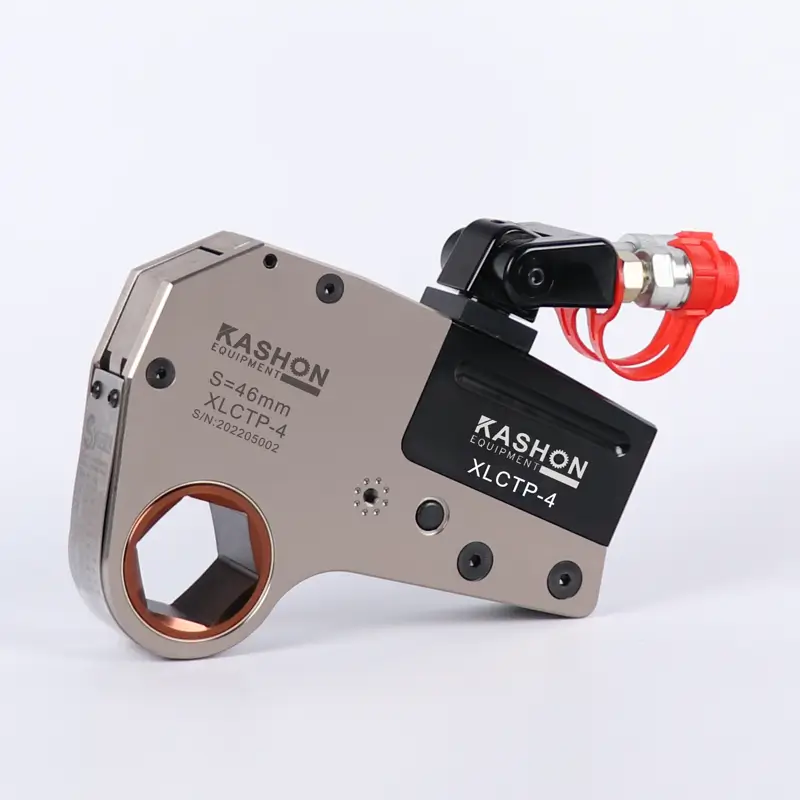

The KASHON XLCTP Low-Profile Hydraulic Torque Wrench is manufactured using high-tech aerospace materials and high-strength alloy steel. It features a 360° x 180° swivel joint and an almost hose-free design. The power head is integrally formed, enhancing its service life.

  • The slim design of the hydraulic torque wrench allows it to easily access confined spaces inaccessible to other torque tools, making it ideal for low-altitude bolt work;
  • The 360°/180°universal joint allows for safe and convenient hose
    adjustment;
  • This versatile power head is compatible with various attachments, which can be easily swapped using a single pin—no tools required.
    With the optional tool holder, bolt work can be performed hands-free,
  • ensuring hand safety;
  • Reliable performance, easily handling various bolting operations even in hard-to-reach areas;
  • Compact design with longer arm fully advances the reliability；
  • Compact design with the raw material of advanced aluminum-titanium alloy,high intense.

Product Video

Specifications

XLCTP Hydraulic Torque Wrench drawing

Model Torque Range Hex Size L L1 H H1 W
(Nm) (mm) (mm) (mm) (mm) (mm) (mm)
XLCTP-2 225-2228 19-60 135 180 98.4 144 32
XLCTP-3 300-3000 27-65 147 195 107 152.8 38
XLCTP-4 536-5366 36-85 175 233 128 174 42.2
XLCTP-5 703-7030 41-85 195 258 147.5 195 45.5
XLCTP-8 1043-11060 46-100 224 296 164 217 53
XLCTP-14 1683-17431 65-120 261.5 349 202 255 64
XLCTP-15 1976-19782 75-130 283 376 222.5 257.5 65
XLCTP-18 2446-24459 75-135 297 396 228.5 281.5 73.5
XLCTP-22 3000-30600 95-150 331 441 252 305 79
XLCTP-30 4205-42046 100-165 347.5 461 267 320 84.5
XLCTP-40 5446-52328 130-180 389 518 298 351 92



Ratchet Links & Reducer Inserts

XLCTP-2 XLCTP-2.2 XLCTP-4 XLCTP-5
Cassett
Model		 Hex S
(mm)		 Radius R
(mm)		 Cassett
Model		 Hex S
(mm)		 Radius R
(mm)		 Cassett
Model		 Hex S
(mm)		 Radius R
(mm)		 Cassett
Model		 Hex S
(mm)		 Radius R
(mm)
XLCTP-2-19 19 26.15 XLCTP-3-27 27 28.25 XLCTP-4-36 36 34.3 XLCTP-5-41 41 39.3
XLCTP-2-22 22 26.15 XLCTP-3-30 30 29.6 XLCTP-4-41 41 36.8 XLCTP-5-46 46 42.2
XLCTP-2-27 27 26.15 XLCTP-3-34 34 31.9 XLCTP-4-46 46 39.6 XLCTP-5-50 50 44.45
XLCTP-2-30 30 27.3 XLCTP-3-36 36 33 XLCTP-4-50 50 41.45 XLCTP-5-55 55 47.3
XLCTP-2-32 32 28.65 XLCTP-3-41 41 35.75 XLCTP-4-55 55 44.3 XLCTP-5-60 60 50.05
XLCTP-2-36 36 30 XLCTP-3-46 46 38.75 XLCTP-4-60 60 47.3 XLCTP-5-65 65 52.8
XLCTP-2-41 41 33.65 XLCTP-3-50 50 41 XLCTP-4-65 65 50.3 XLCTP-5-70 70 55.8
XLCTP-2-46 46 36.31 XLCTP-3-55 55 43.9 XLCTP-4-70 70 53.3 XLCTP-5-75 75 58.8
XLCTP-2-50 50 39.1 XLCTP-3-60 60 46 XLCTP-4-75 75 56.05 XLCTP-5-80 80 61.55
XLCTP-2-55 55 41.9 XLCTP-3-65 65 49 XLCTP-4-80 80 58.85 XLCTP-5-85 85 64.3
XLCTP-2-60 60 45.06 XLCTP-4-85 85 62.3



XLCTP-22 XLCTP-30 XLCTP-40
Cassett Model Hex S
(mm)		 Radius R
(mm)		 Cassett Model Hex S
(mm)		 Radius R
(mm)		 Cassett Model Hex S
(mm)		 Radius R
(mm)
XLCTP-22-95 95 78.8 XLCTP-30-100 100 82.8 XLCTP-40-130 130 104.3
XLCTP-22-100 100 81.55 XLCTP-30-105 105 85.65 XLCTP-40-135 135 107.3
XLCTP-22-105 105 84.3 XLCTP-30-110 110 88.55 XLCTP-40-140 140 110.05
XLCTP-22-110 110 87.15 XLCTP-30-115 115 91.3 XLCTP-40-145 145 113.05
XLCTP-22-115 115 90.55 XLCTP-30-120 120 94.3 XLCTP-40-150 150 115.8
XLCTP-22-120 120 92.95 XLCTP-30-125 125 96.95 XLCTP-40-155 155 118.55
XLCTP-22-125 125 95.8 XLCTP-30-130 130 99.55 XLCTP-40-160 160 121.55
XLCTP-22-130 130 98.7 XLCTP-30-135 135 103.55 XLCTP-40-165 165 124.3
XLCTP-22-135 135 101.55 XLCTP-30-140 140 105.55 XLCTP-40-170 170 127.3
XLCTP-22-140 140 104.45 XLCTP-30-145 145 109.05 XLCTP-40-180 180 132.95
XLCTP-22-145 145 107.41 XLCTP-30-150 150 111.55
XLCTP-22-150 150 110.3 XLCTP-30-155 155 114.55
XLCTP-30-165 165 120.05
