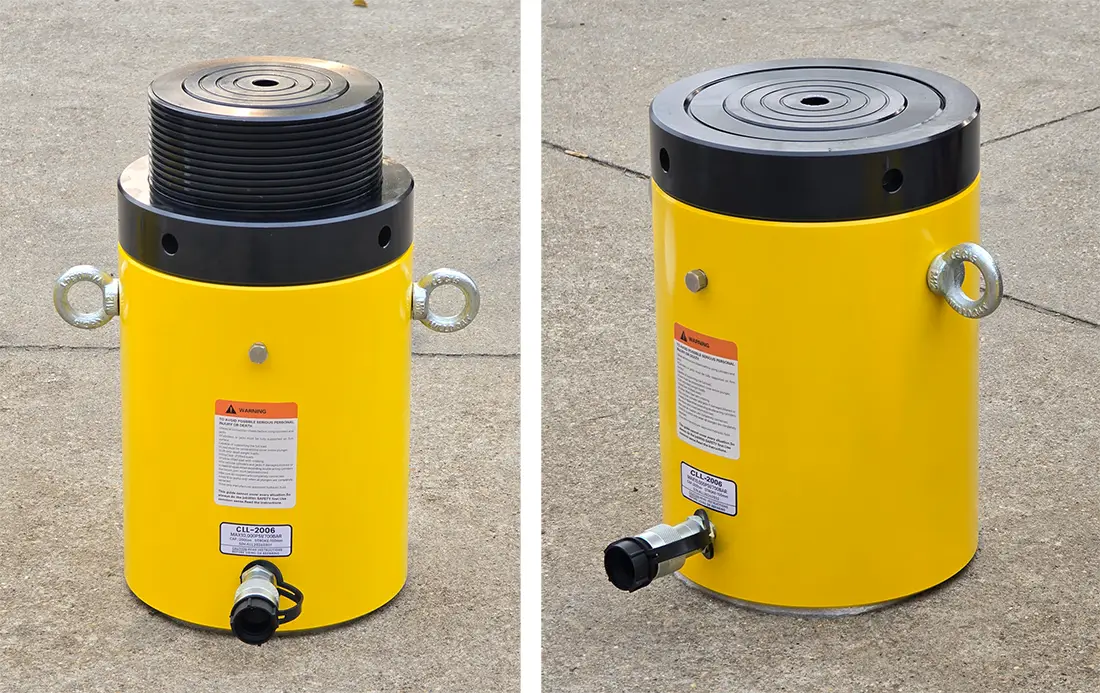

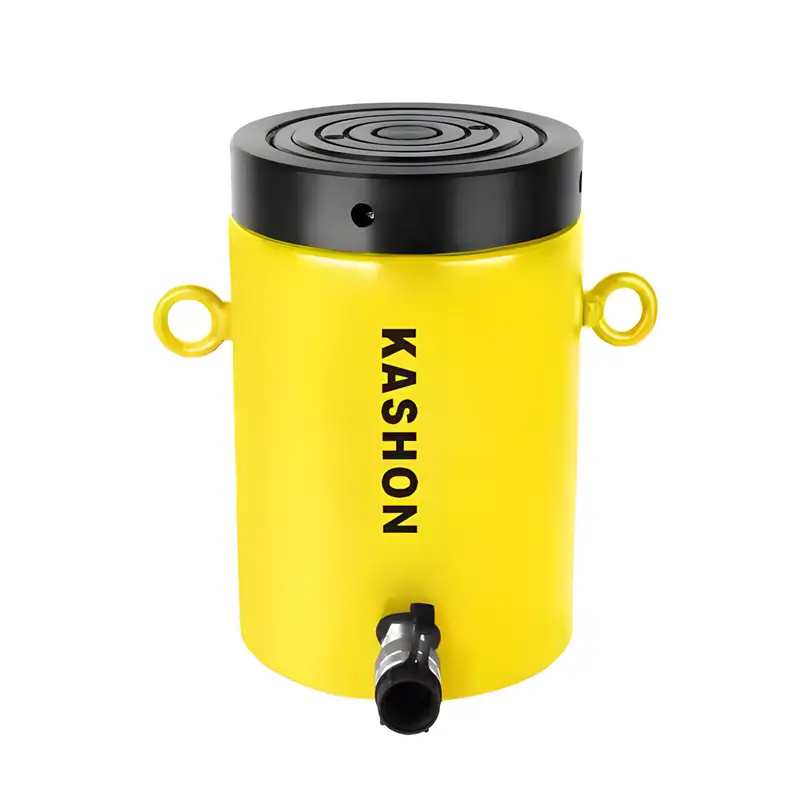

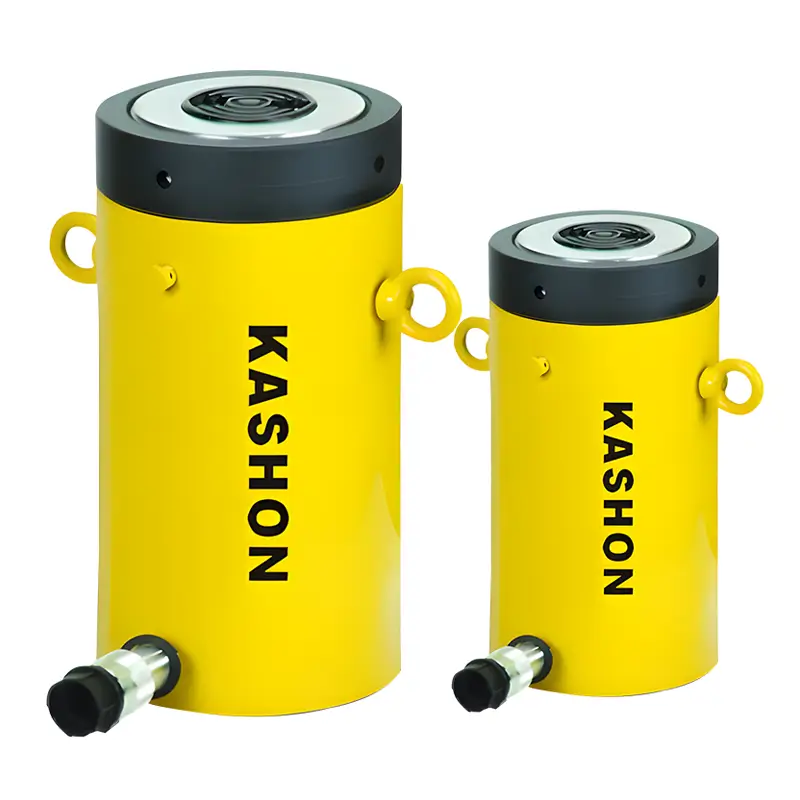

The Kashon CCL-Series single-acting lock nut cylinders is designed for superior performance and longevity. A proprietary low-friction coating ensures exceptionally smooth operation and guards against corrosion, while an integrated plunger wiper actively reduces contamination to extend service life.
These single-acting, load-return cylinders provide ultimate safety with an integral lock nut for secure mechanical load holding. Each unit ships complete with interchangeable hardened saddles and a CR-400 coupler, featuring a clever overflow port that doubles as a stroke limiter.
- Max Working Pressure: 700 Bar;Single acting, load return;
- Supports loads mechanically for extended periods enabling
- hydraulic pressure release;
- Base mounting holes are standard on all models;
- Unique loading design enables it to bear unbalanced
- loads up to 3% capacity with no damage to the cylinder;
- There is a safety valve to prevent overpressure;
- The cylinder piston rod is protected from damage by the interchangeable hardened saddles;
- The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension;
- The dust ring prevents contamination and enhances longer cylinder life
