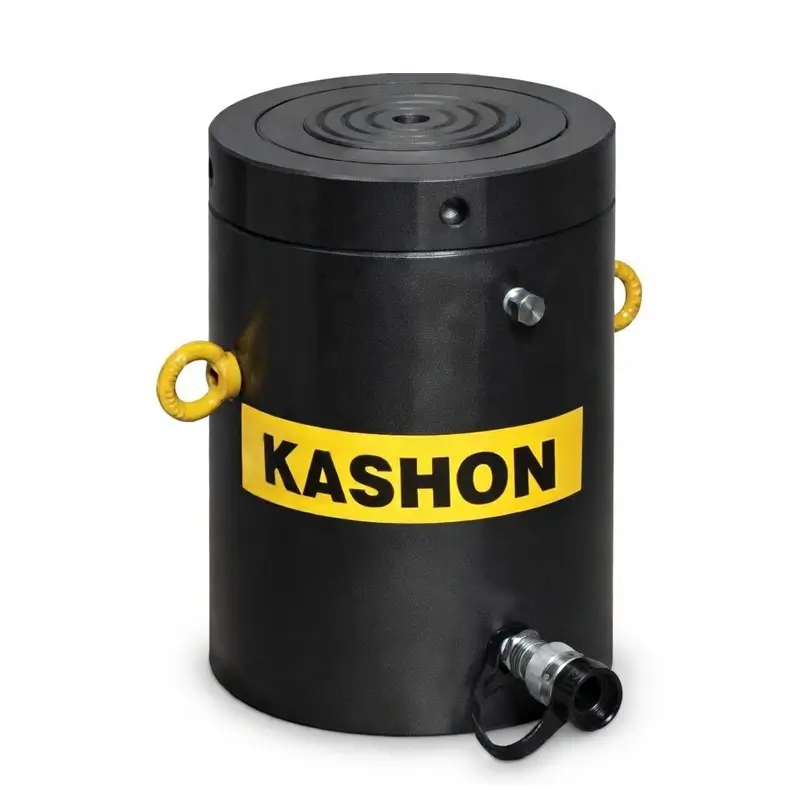

HCL Series, Single-Acting High-Tonnage Lock Nut Cylinders

The Kashon HCL-Series tolerates up to 10% side-loading, ensuring stability in demanding high-tonnage lifts. Protected by a full nitrocarburized finish for superior corrosion resistance, these single-acting, load-return cylinders are built to perform in applications up to 1,000 tons.

Key Specifications

Parameter	Value
Model	HCL
Material	SAIVS
Stroke	16-260
Working Pressure	700BAR/10000PSI
Work Capacity	5-100

GET A QUOTE Download Datasheet

ISO 9001 TÜV Certified Global Shipping

Overview

For the most demanding load-holding applications, the Kashon HCL-Series Single-Acting High-Tonnage Lock Nut Cylinders provide secure mechanical load holding via an integral lock nut.
Its streamlined single-acting, load-return design simplifies maintenance with fewer internal components, while advanced features like a full nitrocarburized finish, replaceable support bearings, and low-wear high-pressure seals ensure reliable performance under extreme conditions.

Safe mechanical load holding for extended periods；
Low friction lock nut spins easily, saving time and effort；
Load return design – simple to use and maintain；
Nitrocarburized surface resists side-loading and cyclic wear；
Withstands 10% side-load up to 90% of maximum stroke；
Overflow port as stroke limiter – prevents plunger blow-out；
Weather protected, inside and out；
Replaceable bearings support the plunger throughout the stroke；
Certified lifting eyes；
Base mounting holes included as standard;
Maximum working pressure up to 10,000 psi (700 bar)；

Specifications

Model	Capacity (ton)	Stroke B (mm)	Oil Capacity (cm³)	Collaps. Height A (mm)	Outside Dia. D (mm)	Saddle Protr. From Plgr. K (mm)	Weight (kg)	Optional Tilt Saddle Model
KSHCL-502	50	50	393	164	130	2	17	CAT-100
KSHCL-504	50	100	785	214	130	2	22	CAT-100
KSHCL-506	50	150	1178	264	130	2	27	CAT-100
KSHCL-508	50	200	1571	314	130	2	32	CAT-100
KSHCL-5010	50	250	1963	364	130	3	38	CAT-100
KSHCL-5012	50	300	2356	414	130	2	43	CAT-100
KSHCL-1002	100	50	716	187	175	2	35	CAT-100
KSHCL-1004	100	100	1431	237	175	2	47	CAT-100
KSHCL-1006	100	150	2147	287	175	2	54	CAT-100
KSHCL-1008	100	200	2863	337	175	2	63	CAT-100
KSHCL-10010	100	250	3578	387	175	2	73	CAT-100
KSHCL-10012	100	300	4294	437	175	2	82	CAT-100
KSHCL-1502	150	50	1069	209	215	2	59	CAT-200
KSHCL-1504	150	100	2138	259	215	2	73	CAT-200
KSHCL-1506	150	150	3207	309	205	2	87	CAT-200
KSHCL-1508	150	200	4276	359	215	3	102	CAT-200
KSHCL-15010	150	250	5346	409	215	2	116	CAT-200
KSHCL-15012	150	300	6415	459	215	2	130	CAT-200
KSHCL-2002	200	50	1418	238	250	2	85	CAT-200
KSHCL-2006	200	150	4253	338	250	2	124	CAT-200
KSHCL-20012	200	300	8506	488	250	2	182	CAT-200
KSHCL-2502	250	50	1815	249	280	2	119	CAT-250
KSHCL-2506	250	150	5446	349	280	2	167	CAT-250
KSHCL-25012	250	300	10892	499	280	2	240	CAT-250
KSHCL-3002	300	50	2169	278	305	2	158	CAT-300
KSHCL-3006	300	150	6506	378	305	2	215	CAT-300
KSHCL-4002	400	50	2863	317	350	5	236	CAT-400
KSHCL-4006	400	150	8588	417	350	5	311	CAT-400
KSHCL-40012	400	300	17177	567	350	5	425	CAT-400
KSHCL-5002	500	50	3653	357	400	5	341	CAT-500
KSHCL-5006	500	150	10959	457	400	5	439	CAT-500
KSHCL-50012	500	300	21918	607	400	5	587	CAT-500
KSHCL-6002	600	50	4276	380	430	5	427	CAT-600
KSHCL-6006	600	150	12829	480	430	5	541	CA-600
KSHCL-60012	600	300	25659	630	430	5	712	CAT-600
KSHCL-8002	800	50	5821	430	505	5	668	CAT-800
KSHCL-8006	800	150	17462	530	505	5	825	CATG-800
KSHCL-10002	1000	50	7603	484	570	5	959	CATG-1000
KSHCL-10006	1000	150	22808	584	570	5	1160	CATG-1000
KSHCL-100012	1000	300	45616	734	570	4	1460	CATG-1000
