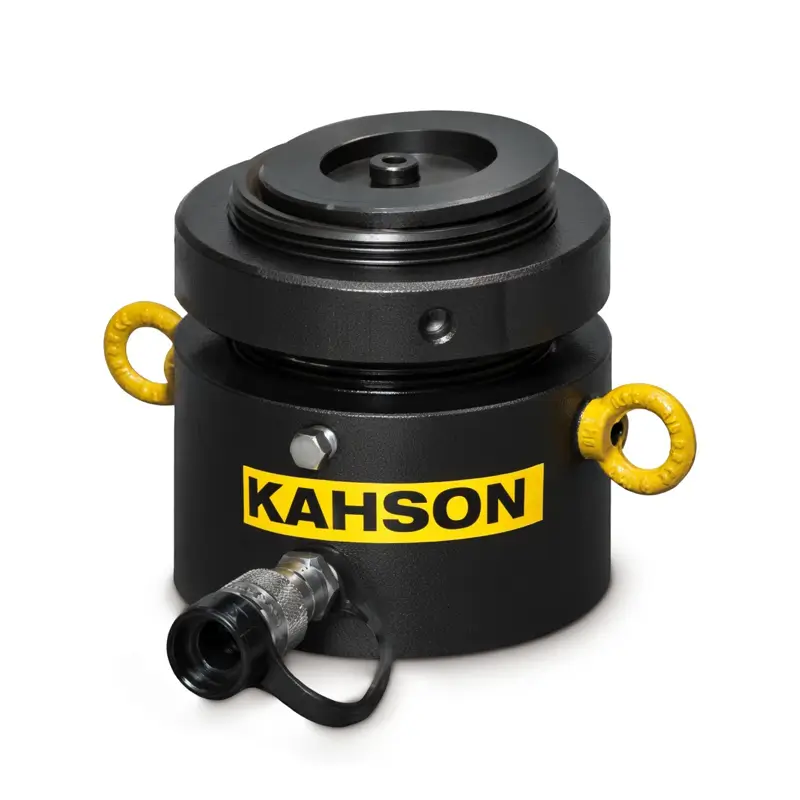

The Kashon LPL-Series hydraulic cylinders prioritize operational safety and long-term durability above all else. For projects requiring sustained load support, an integral lock nut provides steadfast mechanical holding, delivering the stability and peace of mind essential on any demanding job site. This commitment to longevity is reinforced by a premium nitrocarburized finish, which provides exceptional protection against corrosion and wear in the harshest industrial environments.
While built for endurance, the KLC-Series doesn’t compromise on performance. Offering a formidable capacity from 60 to 500 tons, these cylinders are the ideal solution for heavy-duty tasks where space is at a premium. They provide superior lifting range with a stroke length of up to 50 mm (1.97”), and a built-in tilt saddle smartly compensates for up to 5 degrees of misalignment, ensuring consistent and efficient operation even in imperfect conditions.
- Lock nut provides mechanical load holding for a safe work environment;
- Integrated tilt saddle allows for up to 5 degrees of misalignment;
- Extreme low-height for use in confined areas;
- 10% side-load resistance of maximum capacity;
- Overflow port as stroke limiter to prevent plunger blow-out;
- Single-acting, gravity-return.
