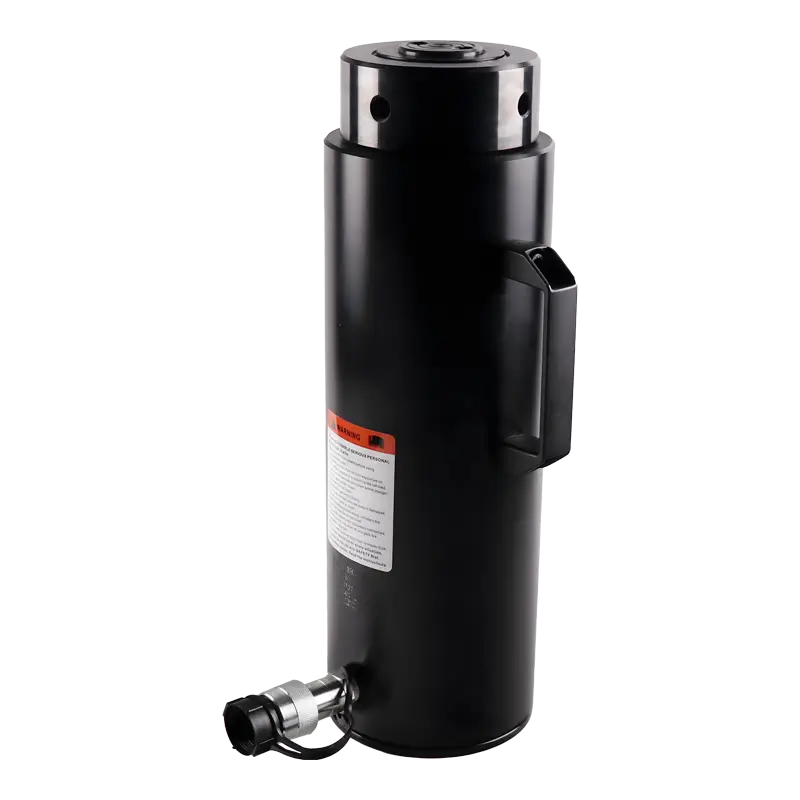

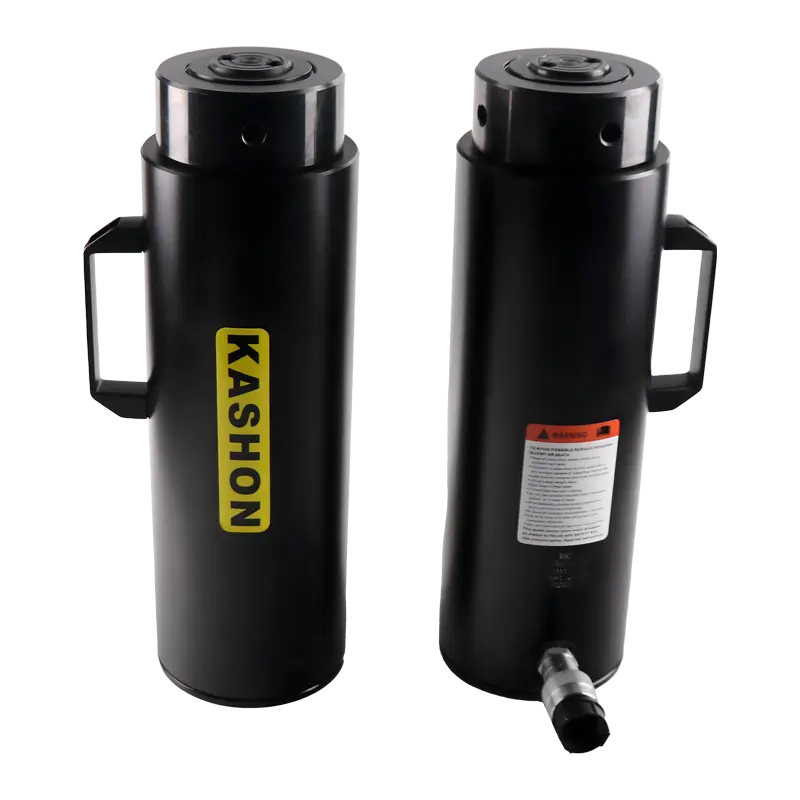

The Kashon RACL-Series single action aluminum lock nut cylinders are built for safe and reliable mechanical load retention over extended periods of time. They are quite good in the power-to-weight ratio, weighing about half of comparable steel ones, which makes them easier to transport and position. These cylinders’ lock nut feature guarantees secure mechanical clamping, which makes them an ideal selection for demanding applications.
All surfaces of the RACL-Series cylinders are hard coated for optimal durability to help resist damage and corrosion. Composite bearings and a reinforced steel stop ring improve cylinder life and increase side-load resistance by up to 5%. All variants have a steel base plate and hardened steel saddle to prevent against damage from the load.
The return spring is of high strength for the quick retraction of the cylinder. This inbuilt stop ring is a safety element that prevents plunger over-travel and can handle the full cylinder capacity. All RACL-Series units rated to 10,000 psi (700 bar) include handles for transportation as standard
- Max. Working pressure: 700bar.
- Single acting aluminum lock nut hydraulic cylinder provides mechanical load holding.
- Hardened steel stop ring increases cylinder life and resistance to side loads of up to 5%.
- Composite bearings increase cylinder life and prevent side-load.
- Steel base plate and saddle for protection against load-induced damage.
- Integral stop ring prevents plunger over-travel and is capable of withstanding the max. lifting capacity.
- High-strength return spring for rapid cylinder retraction.
- Hard coat finish on all surfaces resists damage and extending cylinder life.
