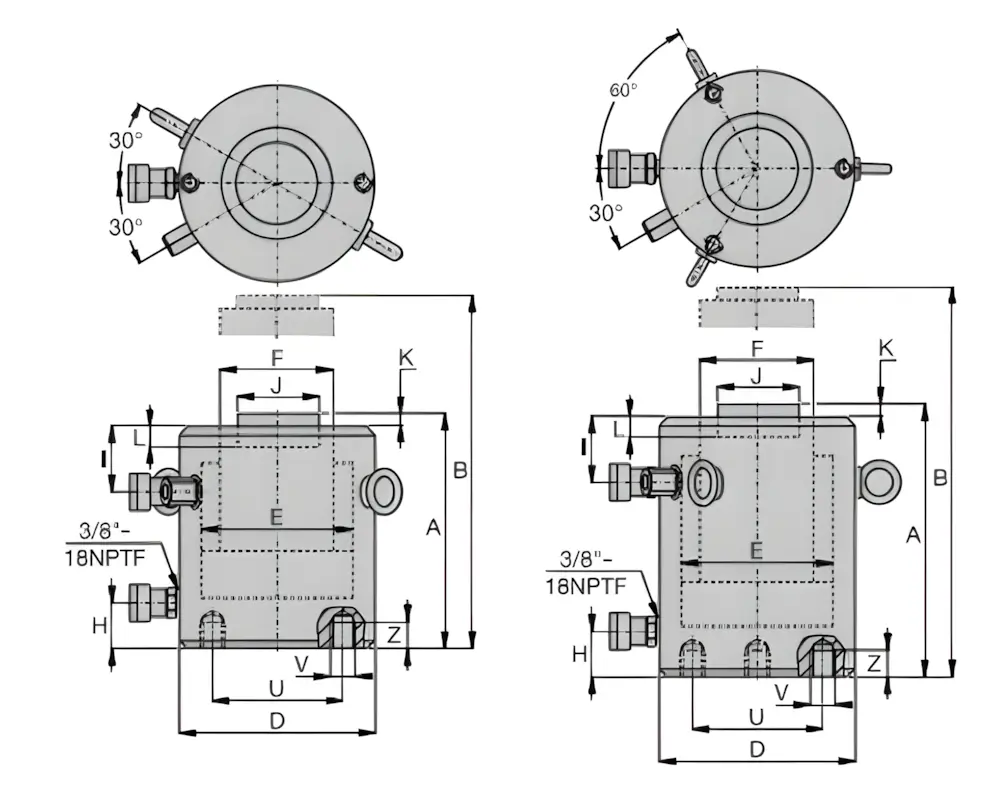

Kashon CLRG-Series double-acting high tonnage cylinder, A core design principle of this series is its integrated safety system, featuring a safety valve on the cylinder’s retract side to mitigate over-pressurization risks.
To enhance durability and reliability, all CLRG cylinders are equipped with a plunger wiper, a feature that reduces contamination and ensures a longer operational life. While specifically designed for heavy lifting up to 1,000 tons, Aztec Bolting can coordinate the special order of higher capacity models to meet your unique project specifications.
- Max Working Pressure: 700 Bar;
- These double acting cylinders enable quick retraction and are designed to be used in all orientations;
- Base mounting holes are standard on all models; Tilt saddles are optional;
- Unique loading design enables it to bear unbalanced loads up to 3% capacity with no damage to the cylinder;
- The cylinder piston rod is protected from damage by the interchangeable hardened saddles;
- Over-pressurisation is prevented due to built in safety valves;
- The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension;
