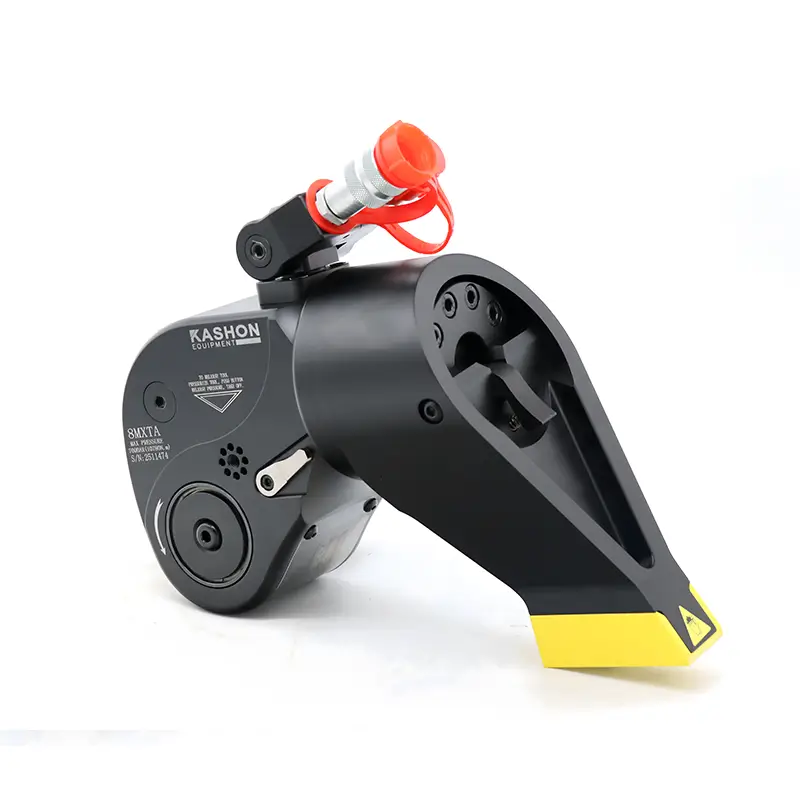

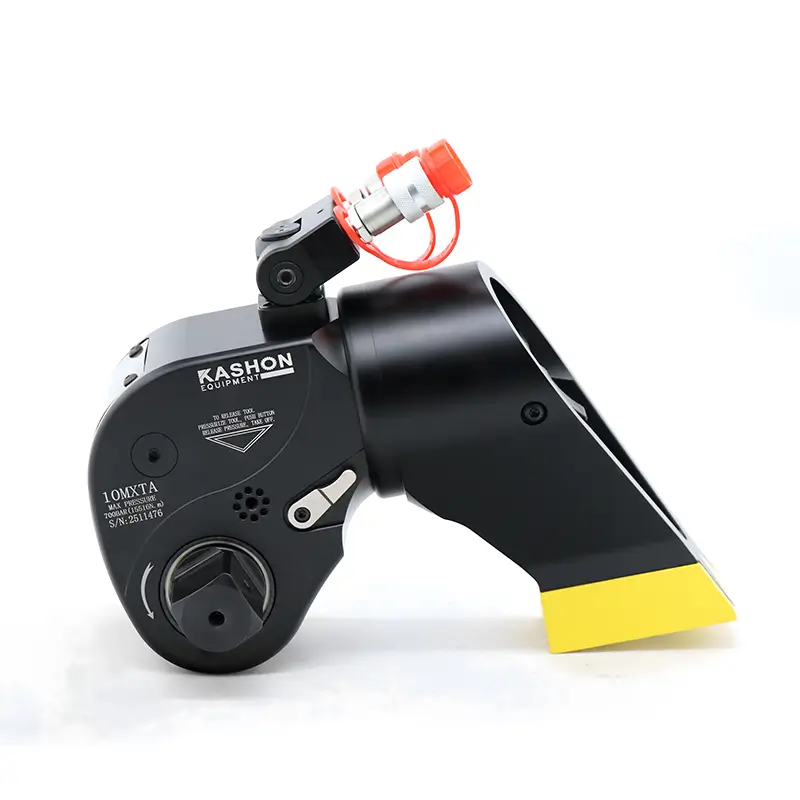

MXT3 square drive hydraulic torque wrench

$144-$1,285 / Unit (FOB Shanghai)

The square-drive hydraulic wrench, designed for use with standard sockets, is a versatile tool capable of meeting the demands of even the most rigorous applications, with an accuracy of ±3%.

Key Specifications

Parameter Value
Model MXT3
Torque Range 112 - 72000 Nm
Square Drive Size 3/4'', 1'',1-1/2'' 2-1/2''
Working Pressure 700BAR/10000PSI
Accuracy ±3%
GET A QUOTE
ISO 9001 TÜV Certified Global Shipping

Overview

  • Max Working Pressure: 700 Bar;
  • Compact design, made of TITAL-919 alloy, a high, strength and ultra-light space material with the strength and toughness of the fuselage significantly strengthened;
  • 360°swivel hose coupler. Completely free of space restriction;
  • The trigger lock needs only slight pressure to be operated, and the reaction arm of can be situated 360°on the support as required;
  • A precise ratchet is adopted with 3% accuracy.

Product Video

Advantages

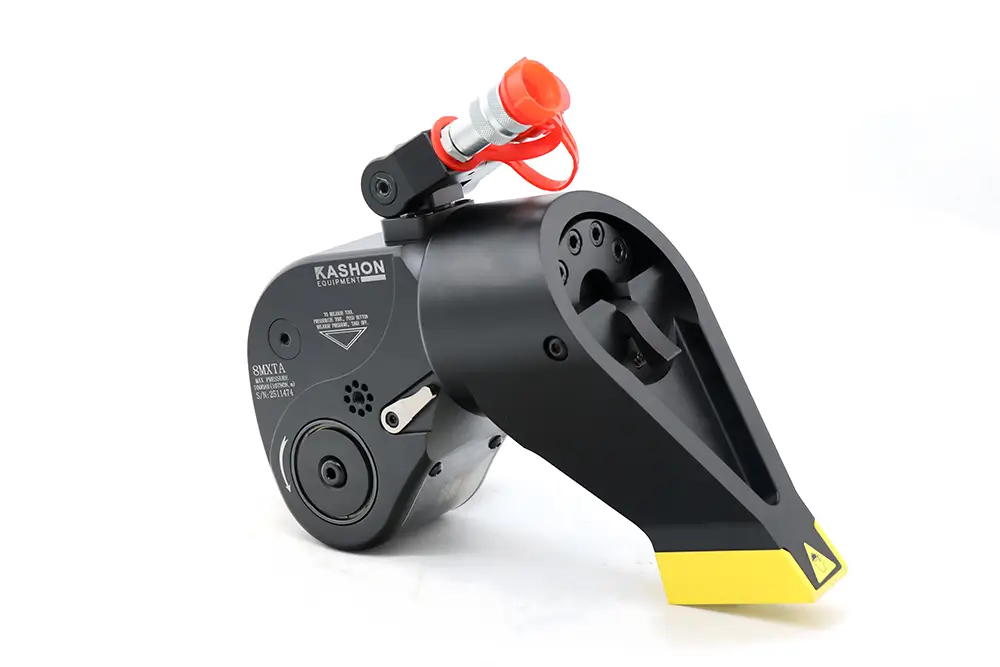

Unibody Housing hydraulic torque wrench

Unibody Housing

The Kashon series housing is machined from a single block of 7075-T6 aerospace-grade aluminum, reducing torsion and flex under pressure for enhanced durability and reliability.

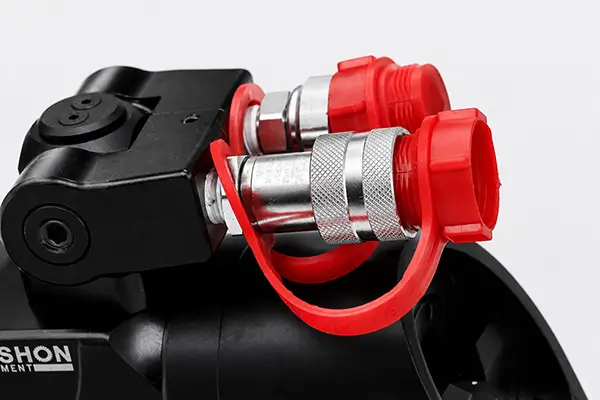

Kashon 360° x 360° Swivel

360° x 360° Swivel

Our unique dual-axis swivel design allows the hoses to move a full 360 degrees on two separate planes. This provides complete freedom of movement and prevents hose kinking and binding.

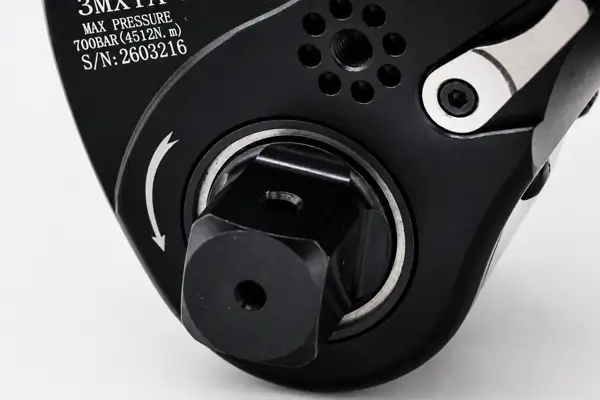

hydraulic torque wrench Push-Through Drive

Push-Through Drive

The push-through square drive allows operators to effortlessly switch from tightening to loosening without having to remove the drive, saving time and simplifying operation.

hydraulic torque wrench Reaction Boot

Reaction Boot

This feature protects the main reaction points on the reaction arm from wear and damage. It is fully field-replaceable, minimizing downtime and maintenance costs.

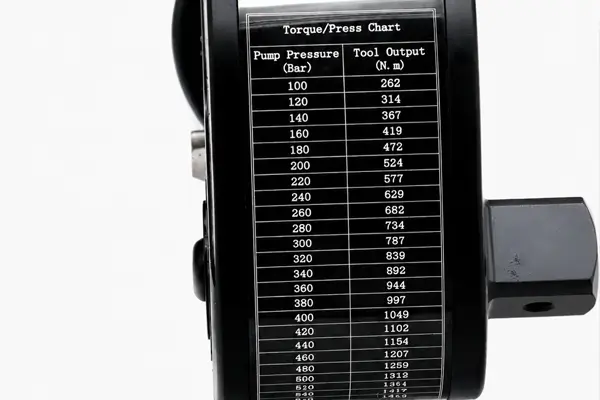

Laser-Engraved Torque Chart

Laser-Engraved Torque Chart

The dual-sided protective shroud features a permanently laser-engraved torque chart. This ensures critical torque data is always available and can never be lost or damaged during use.

Shrouded Reaction Arm Release

Shrouded Reaction Arm Release

For enhanced safety, the reaction arm release button is shrouded within the arm’s housing. This design prevents accidental disengagement of the arm during operation.

Multi-Tooth Drive Segment

Multi-Tooth Drive Segment

This advanced drive segment design ensures a consistent 27-degree stroke on every full cycle of the tool, providing reliable and efficient torque output.

No-Drip Quick-Connect Couplers

No-Drip Quick-Connect Couplers

Engineered for simple and secure engagement, these 3:1 safety-rated couplers prevent fluid spills. The integrated locking collar on the coupler ensures a safe and secure hydraulic connection.

Specifications

MXT3 Torque Specification



Torque Wrench Model Number MXT8
Maximum Operating Pressure (bar) 700
Torque Range (Nm) 1078-10780
Square Drive 1 1/2″
Bolt Range (mm) 46-95
Weight (Kg) 11.7


Download KMX-3 Technical Data Sheet (PDF)

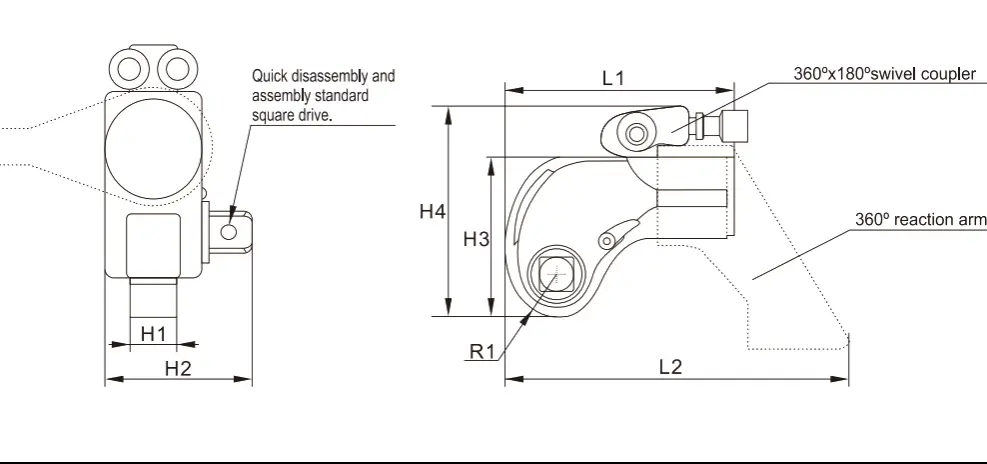

MXT Series Torque Specification

Model Torque Range Square
Drive		 L1 L2 H1 H2 H3 H4 R1 R2 Weight
(Nm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
07MXTA 112-1120 3/4 110.8 139.3 42 65.8 76.2 108.1 20.5 68.3 1.8
1MXTA 187–1873 3/4 144.5 173.5 50 72 96 131 26 85 2.5
3MXTA 451–4512 1 178 229 68 95 127 176.5 34 114 5
5MXTA 752–7528 1-1/2 210.5 270.5 80 123 149 199 39 137 8
8MXTA 1078-10780 1-1/2 222 293 90 134 167 217 47 153 11
10MXTA 1551-15516 1-1/2 245.5 317.5 100 142 182 232 51 154 15
15MXTA 2019-20194 2-1/2 292.8 361.3 112 167.4 206 276.4 56 174.2 23
20MXTA 2666-26664 2-1/2 307.5 383.5 120 183 220 270 59 186 26.5
25MXTA 3472–34725 2-1/2 323 401 137 200 247 297 66 199 35
35MXTA 4866-48666 2-1/2 372.5 496.5 153 216 282 332 77 241 50
50MXTA 7200–72000 2-1/2 400 516 160 223 291 341 81 259 87

Certificates
