XLCT Ratchet Cassette Hydraulic Torque Wrench

$144-$1,285 / Unit (FOB Shanghai)

The KASHON XLCT Hydraulic Torque Wrench is the world's best-selling limited-clearance industrial bolting system; from the tallest roller coasters to the world's largest bridges, the XLCT has the capability to get the job done.

Key Specifications

Parameter Value
Model XLCT
Torque Range 243.00 - 3098600 Nm
Square Drive Size XLCT
Working Pressure 700BAR/10000PSI
Accuracy ±3%
GET A QUOTE Download Datasheet
ISO 9001 TÜV Certified Global Shipping

Overview

The KASHON XLCT series is a professional-grade, low-profile hydraulic torque wrench engineered specifically for the global market. Its cassette-style design engages the nut directly, delivering precise and powerful torque in confined spaces where conventional square drive tools cannot operate. With a modular system of interchangeable cassettes and reduction inserts, the XLCT series provides outstanding versatility, covering a full range of bolt sizes from S19 to S175. Every tool is backed by the KASHON guarantee: comprehensive global after-sales service, a complete supply chain, and full ISO, CE, and TUV certifications for ultimate reliability

  • 700bar max working pressure;keep the accuracy ±3%;
  • 5 models with the range from 232-44593N.m;
  • 360*185 degree swivel&360*360=129600degree swivel allow the
  • wrench free to operation with no space limitation;
  • More accuracy and easier when the wrench direct operate on the nuts;
  • Compact design with longer arm fully advances the reliability.Compact design with the raw material of advanced aluminum-titanium
    alloy,high intense.

Product Video

Specifications

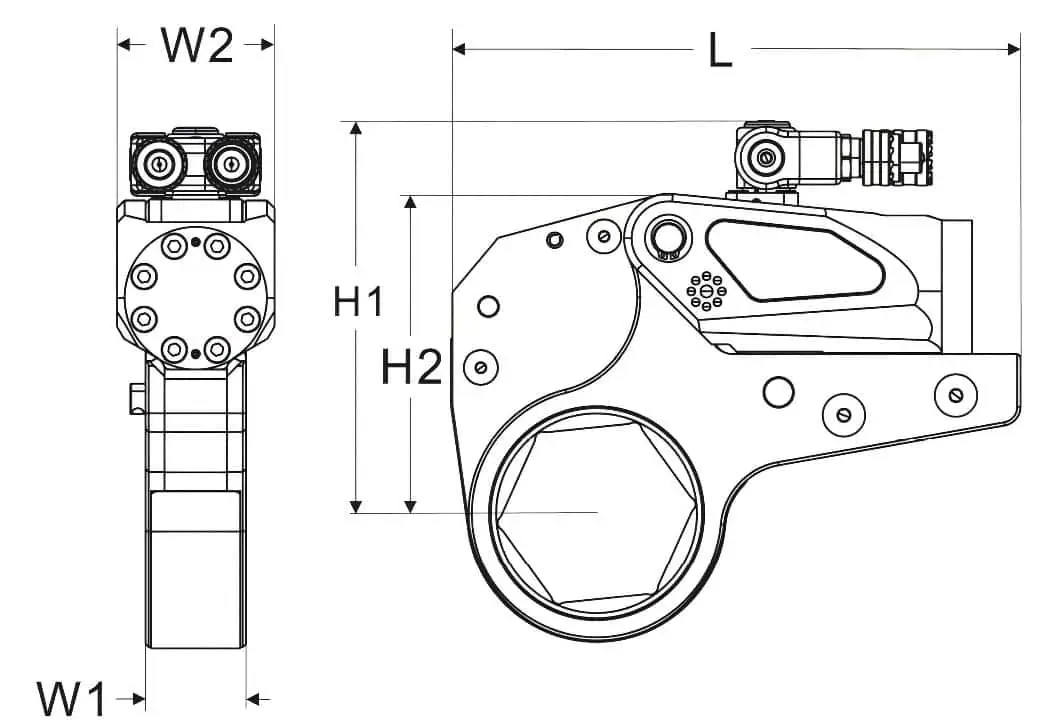

xlct hydraulic torque wrench drawing

Torque Wrench Drive
Unit Model
Torque Range
(Nm)
A/F Rnage
(mm)
Dimension(mm)
L
Dimension(mm)
H1
Dimension(mm)
H2
Dimension(mm)
W1
Dimension(mm)
W2
Drive Unit Weight
(Kg)
Cassette Weight
(Kg)
XLCT-2 232-2328 19-55 186 138 102 32 51 1.2 1.6
241-2414 60 186 141 105 32 51 1.2 1.7
XLCT-4 585-2510 34-36 245 177 136 42 66 2.2 4
585-5858 41-65 245 177 136 42 66 2.2 4.4
XLCT-8 647-6474 70-80 246 187 146 42 66 2.2 4.6
1094-10941 41-95 300 207 169 53 83 3.4 8
XLCT-14 1177-11774 100-105 301 216 178 53 83 3.4 8.4
1852-18521 50-117 361 239 204 64 99 5.6 11.6
XLCT-18 2601-26011 75-135 364.3 268.7 230.7 70 111 6 12.8
XLCT-30 4188-41882 85-155 420 303 272 85 131 12 29
4459-44593 160-175 431 315 285 85 131 12 30
